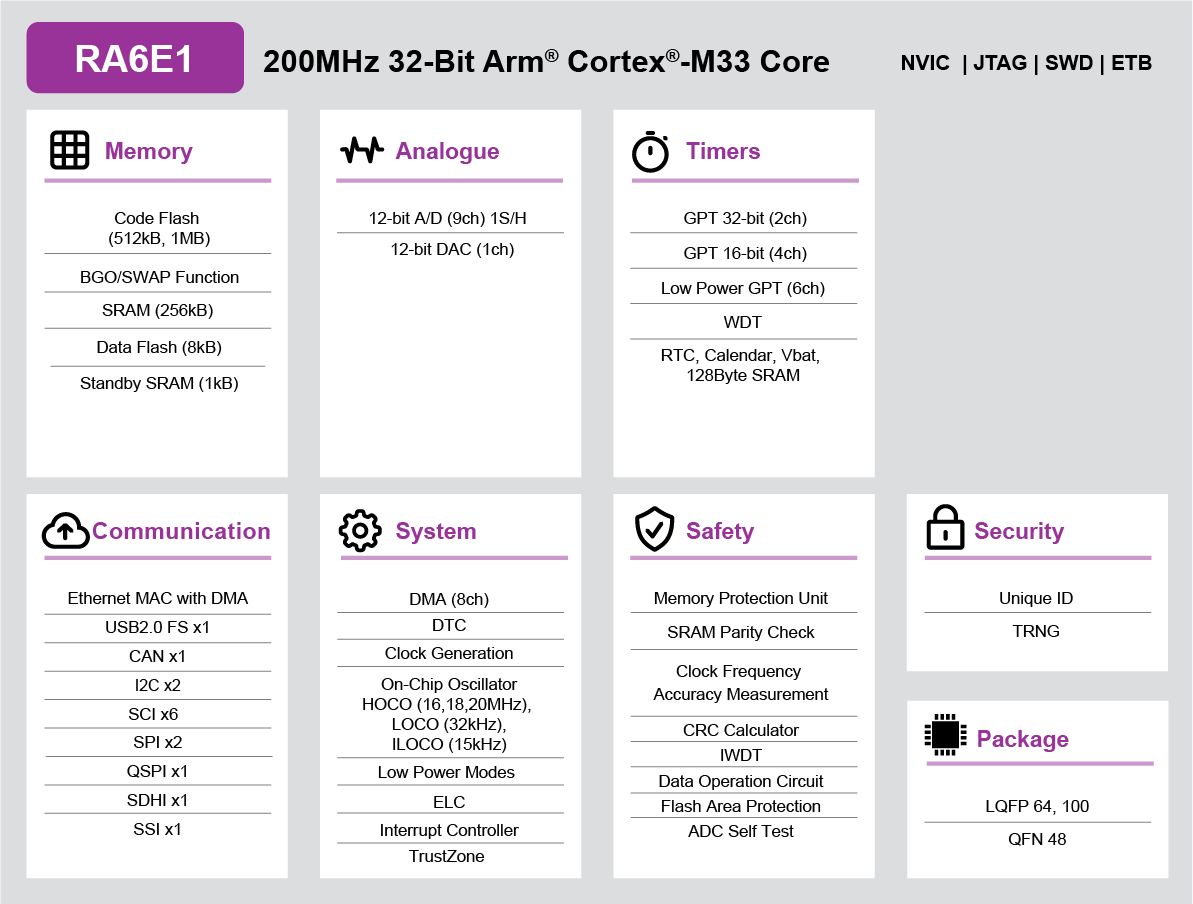

R7FA6E10F2CNE#AA0, 32bit ARM Cortex M33 Microcontroller, RA6E1, 200MHz, 1.024 MB Flash, 48-Pin QFN

Family Name:

RA6E1

Package Type:

QFN

Mounting Type:

Surface Mount

Pin Count:

48

Device Core:

ARM Cortex M33

Data Bus Width:

32bit

Program Memory Size:

1.024 MB

Maximum Frequency:

200MHz

RAM Size:

256 kB

USB Channels:

1

Number of PWM Units:

2

Number of SPI Channels:

2

Number of CAN Channels:

1

Number of USART Channels:

0

Typical Operating Supply Voltage:

2.7 → 3.6 V

Number of I2C Channels:

2

Number of UART Channels:

1

ADCs:

5 x 12 bit

Length:

7.05mm

Pulse Width Modulation:

4 x 16 bit, 2 x 32 bit

Program Memory Type:

Flash

Maximum Operating Temperature:

+85 °C

Number of ADC Units:

1

Number of LIN Channels:

0

Number of PCI Channels:

0

Number of Ethernet Channels:

0

Maximum Number of Ethernet Channels:

0

Dimensions:

7.05 x 7.05 x 0.8mm

Height:

0.8mm

Width:

7.05mm

Minimum Operating Temperature:

-40 °C
