AVX 0603 MLCC series X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials, and COG (NPO) is the most popular “temperature-compensating” EIA Class I ceramic materials Multilayer Ceramic Capacitors whose temperature variation is within ±15% from -55°C to +125°C
The capacitance change is non-linear
Capacitance for X7R varies under the influence of electrical operating conditions such as voltage and frequency
AVX high voltage chips have advantages of high value, low leakage and small size, thus applications include as snubbers in high frequency power converters, resonators in SMPS and high voltage coupling/DC blocking
These high voltage chip designs exhibit low ESRs at high frequencies
Reduced noise X5R versions available

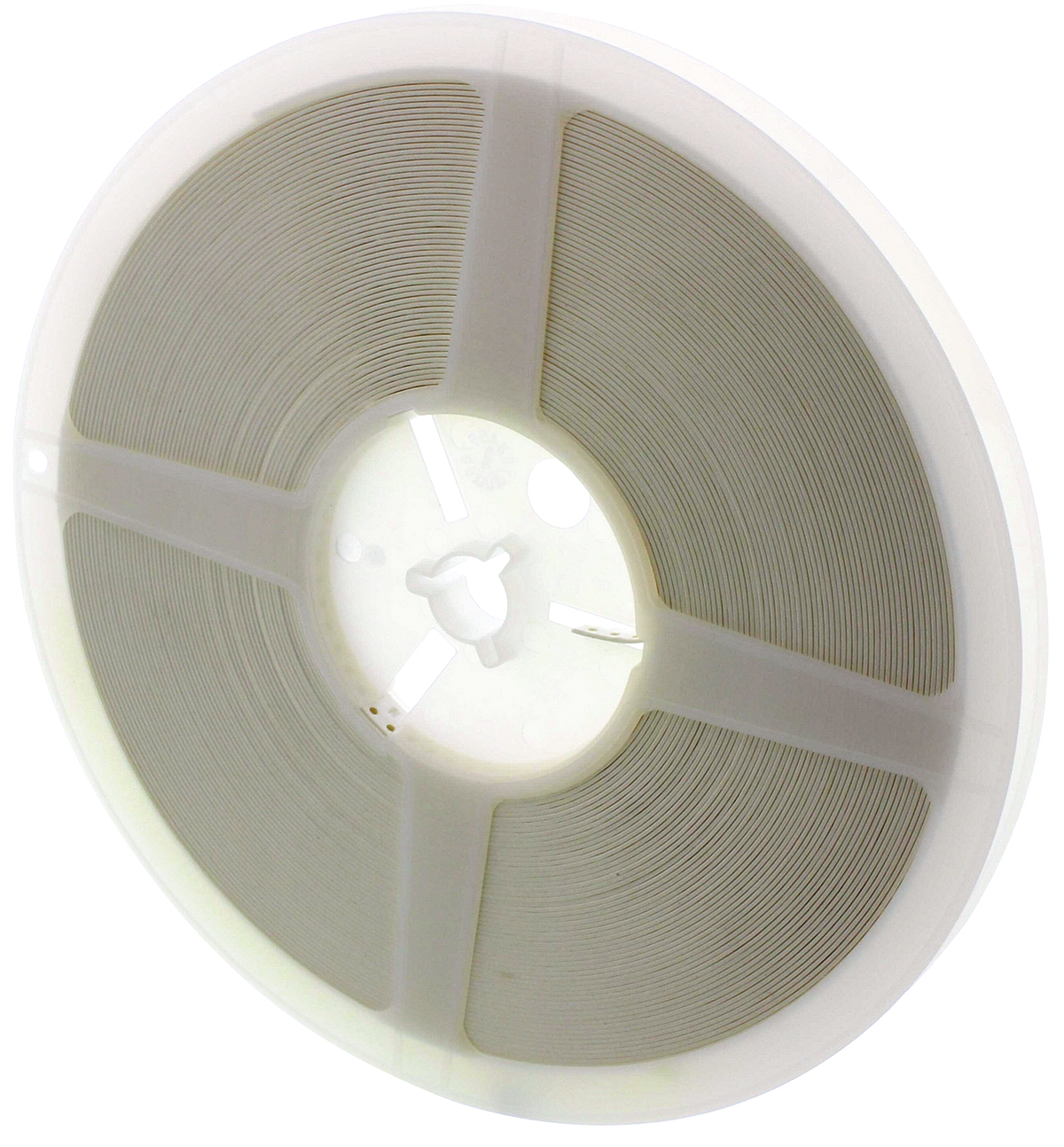

KYOCERA AVX 10nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±5% , SMD

Manufacturer:
Manufacturer Part No:
06035C103JAT2A
Enrgtech Part No:
ET13925093
Warranty:
Manufacturer
Checking for live stock
Capacitance:
10nF
Voltage:
50V dc
Package/Case:
0603 (1608M)
Mounting Type:
Surface Mount
Dielectric:
X7R
Tolerance:
±5%
Dimensions:
1.6 x 0.81 x 0.9mm
Length:
1.6mm
Depth:
0.81mm
Height:
0.9mm
Series:
Standard
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-55°C
Terminal Type:
Surface Mount
pdf icon
X7R Dielectric Capaciotor Data Sheet-45d7e4d4(datasheets)
