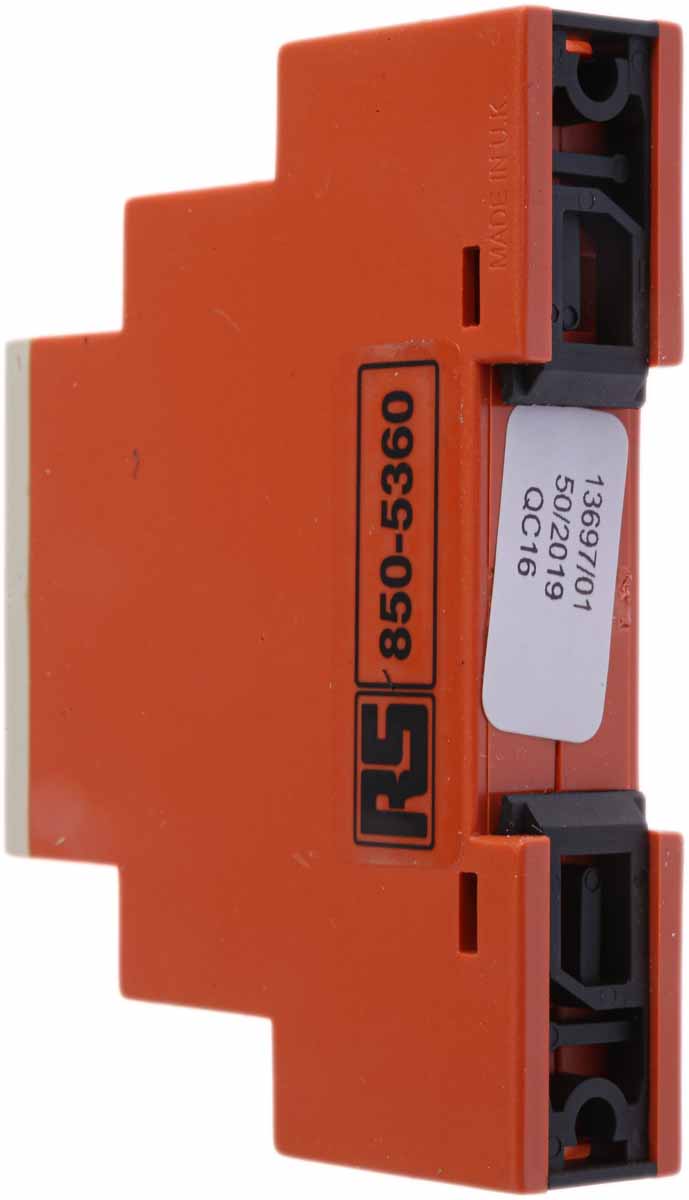

Phase, Voltage Monitoring Relay, 3 Phase, SPDT, DIN Rail

Monitoring Application:

Phase, Voltage

Electrical Phase:

3

Contact Configuration:

SPDT

Voltage Sensitivity:

Overvoltage, Undervoltage

Mounting Type:

DIN Rail

Phase Sensitivity:

Phase Failure, Phase Sequence

Time Delay:

0.2 → 10s

Frequency Sensing Range:

48 → 63Hz

Series:

L

Dimensions:

66.5 x 17.5 x 89mm

Current Range:

Maximum of 8A

Maximum Operating Temperature:

+60°C

Operating Temperature Range:

+60°C

Length:

66.5mm

Height:

89mm

Width:

17.5mm

Minimum Operating Temperature:

-20°C

Number of Poles:

1

Special Features:

Adjustment for Trip Level & Time Delay

Terminal Type:

Screw
