L Series - Selectable Control Relays
L Series relay range of timers, control and three phase relays incorporate the latest technology and offer a wide range of user adjustable features.
17.5mm DIN rail housing
Microprocessor based
True R.M.S. monitoring
Isolated auxiliary supply (24 - 230 V ac/dc)
1 x SPDT relay output 8A
Green LED indication for supply status
Microprocessor based
True R.M.S. monitoring
Isolated auxiliary supply (24 - 230 V ac/dc)
1 x SPDT relay output 8A
Green LED indication for supply status

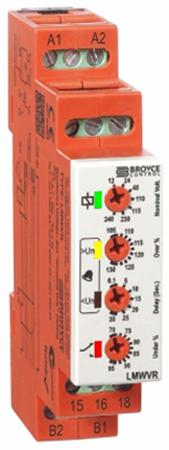

Voltage Monitoring Relay, SPDT, 12 → 240V ac/dc, DIN Rail
Manufacturer:
Broyce Control
Manufacturer Part No:
LMWVR 12-240V AC/DC
Enrgtech Part No:
ET13923868
Warranty:
Manufacturer
£ 115.86
Checking for live stock
Monitoring Application:
Voltage
Voltage Sensing Range:
12 → 240V ac/dc
Contact Configuration:
SPDT
Voltage Sensitivity:
Overvoltage, Undervoltage
Mounting Type:
DIN Rail
Time Delay:
0.1 → 30s
Series:
L
Minimum Operating Temperature:
-20°C
Height:
89mm
Maximum Operating Temperature:
+60°C
Minimum Voltage Sensed:
240V ac/dc
Operating Temperature Range:
+60°C
