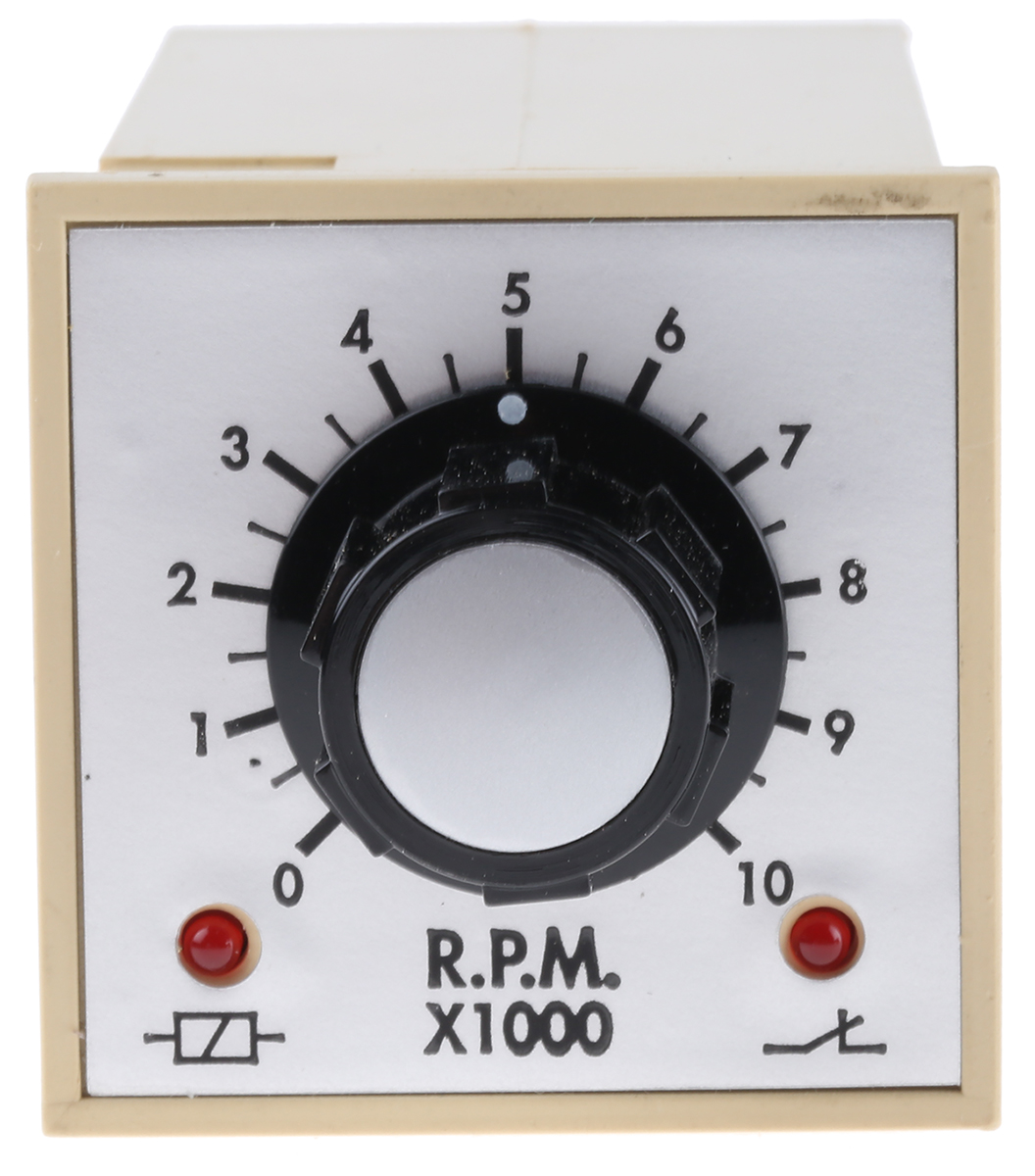

Tachometer Relay

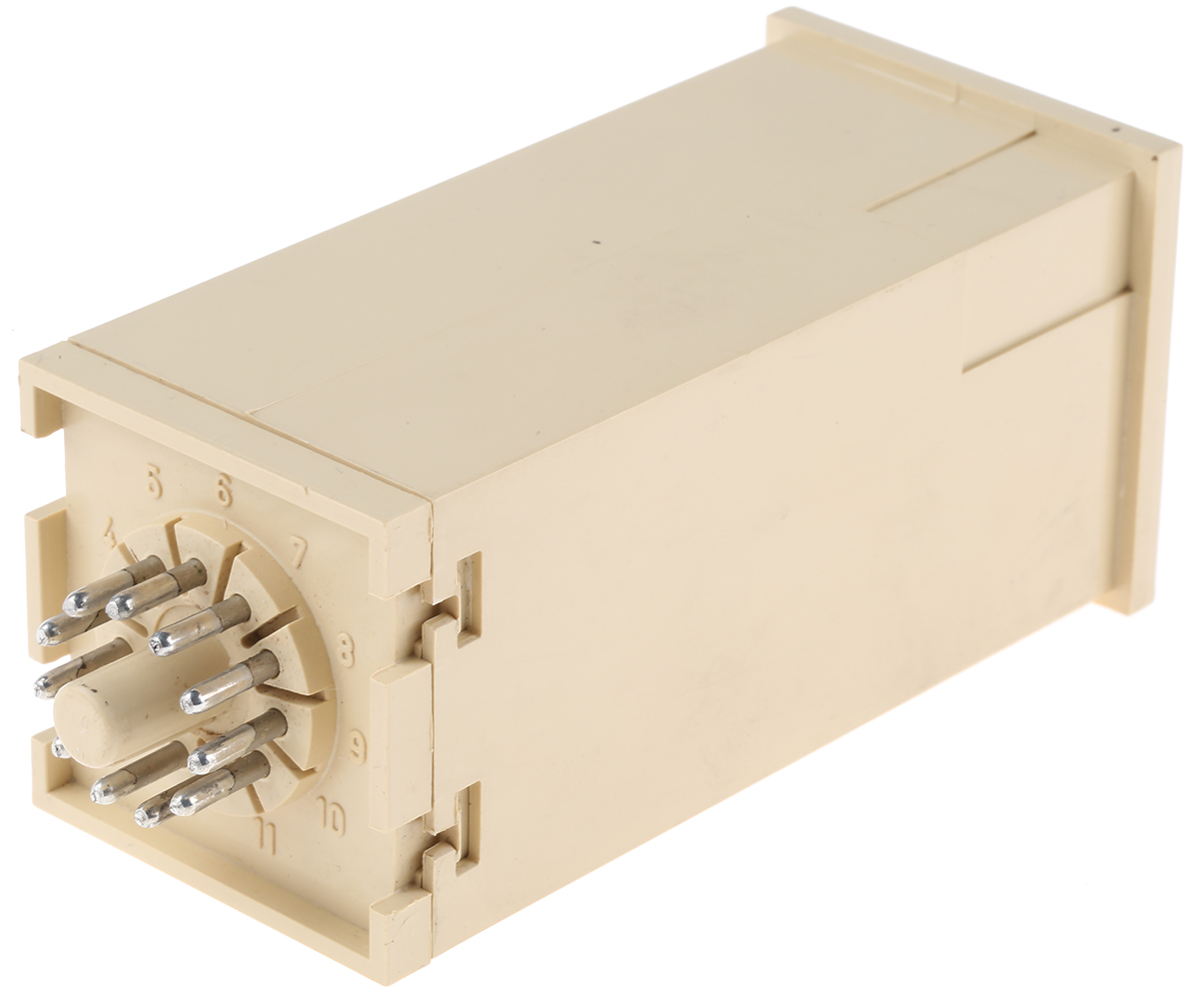

DIN standard case, which may be front panel or chassis mounted (11-pin socket 403-869).
Monitors the speed of machinery via the inputs from RS inductive proximity switches, open collector transistor or relay contact type devices
On-board 24V dc supply for proximity device and an output suitable to drive a 100μA FSD moving coil meter for monitoring rpm of machinery
LED indication of relay status and supply
45mm x 45mm panel cut-out
SPCO output
On-board 24V dc supply for proximity device and an output suitable to drive a 100μA FSD moving coil meter for monitoring rpm of machinery
LED indication of relay status and supply
45mm x 45mm panel cut-out
SPCO output
Speed Monitoring Relay, SPDT, DIN Rail
Manufacturer:
Tempatron
Manufacturer Part No:
FSST-110/230VAC
Enrgtech Part No:
ET13974857
Warranty:
Manufacturer
£ 113.04
Checking for live stock
Monitoring Application:
Speed
Contact Configuration:
SPDT
Mounting Type:
DIN Rail
Frequency Sensing Range:
50 → 60Hz
Series:
FSST
Number of Poles:
1
Minimum Operating Temperature:
-10°C
Operating Temperature Range:
+50°C
Maximum Operating Temperature:
+50°C
Dimensions:
118 x 48 x 48mm
Current Range:
Maximum of 5A
Height:
48mm
