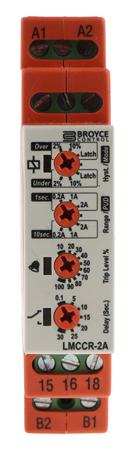

Current Monitoring Relay, SPDT, DIN Rail

Monitoring Application:

Current

Contact Configuration:

SPDT

Mounting Type:

DIN Rail

Minimum Current Sensed:

0.02 A, 0.1 A, 0.2A

Maximum Current Sensed:

0.2 A, 1 A, 2A

Current Sensitivity:

Overcurrent, Undercurrent

Time Delay:

0.1 → 30s

Frequency Sensing Range:

48 → 63Hz

Series:

L

Special Features:

Adjustment for Trip Level & Time Delay

Terminal Type:

Screw

Operating Temperature Range:

+60°C

Length:

66.5mm

Height:

89mm

Current Range:

0.02 → 0.2A, 0.1 → 1A, 0.2 → 2A

Dimensions:

66.5 x 17.5 x 89mm

Maximum Operating Temperature:

+60°C

Width:

17.5mm

Minimum Operating Temperature:

-20°C

Number of Poles:

1
