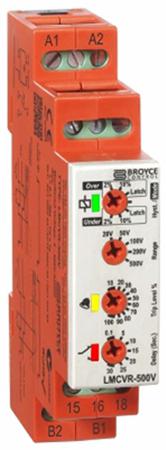

Voltage Monitoring Relay, SPDT, 0.1 → 20V ac/dc, DIN Rail

Monitoring Application:

Voltage

Contact Configuration:

SPDT

Voltage Sensing Range:

0.1 → 20V ac/dc

Voltage Sensitivity:

Overvoltage, Undervoltage

Mounting Type:

DIN Rail

Time Delay:

0.1 → 30s

Frequency Sensing Range:

48 → 63Hz

Series:

L

Terminal Type:

Screw

Operating Temperature Range:

+60°C

Maximum Voltage Sensed:

1 V, 2 V, 5 V, 10 V, 20V

Current Range:

Maximum of 8A

Dimensions:

66.5 x 17.5 x 89mm

Maximum Operating Temperature:

+60°C

Width:

17.5mm

Minimum Operating Temperature:

-20°C

Minimum Voltage Sensed:

0.1 V, 0.2 V, 0.5 V, 1 V, 2 V

Special Features:

Adjustment for Trip Level & Time Delay

Number of Poles:

1

Length:

66.5mm

Height:

89mm
