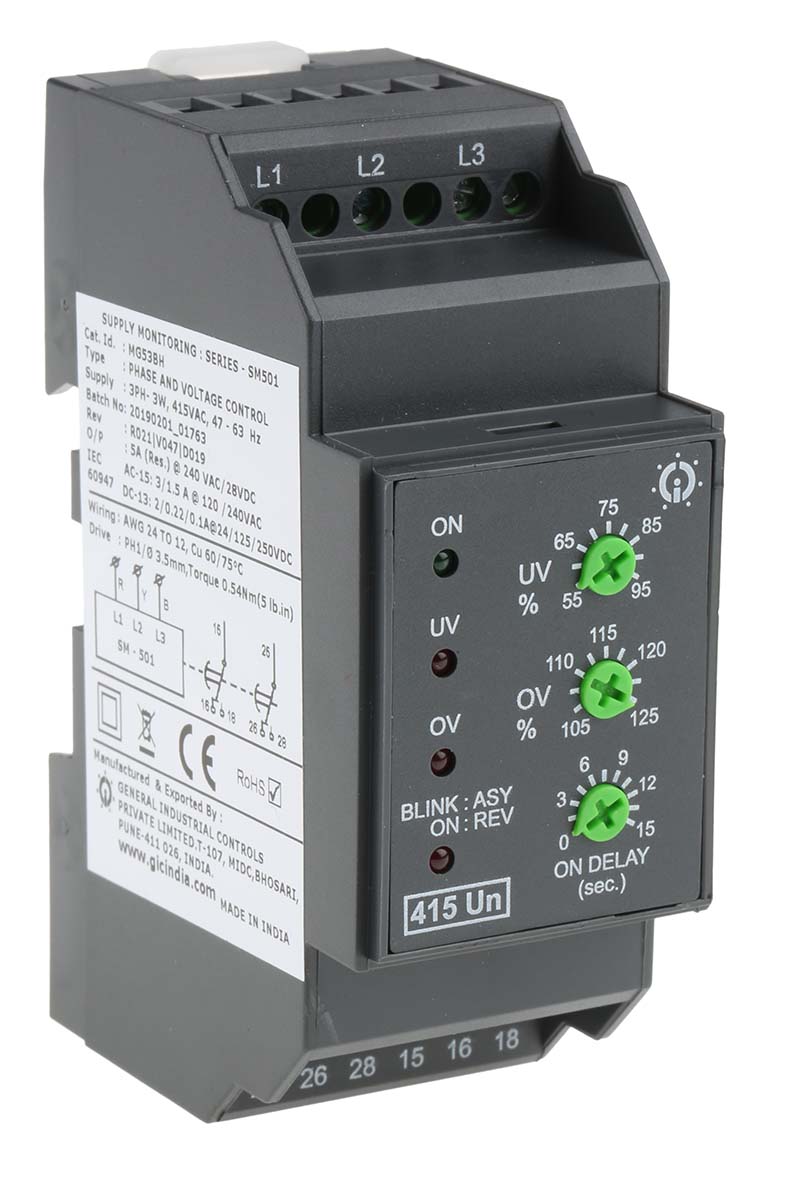

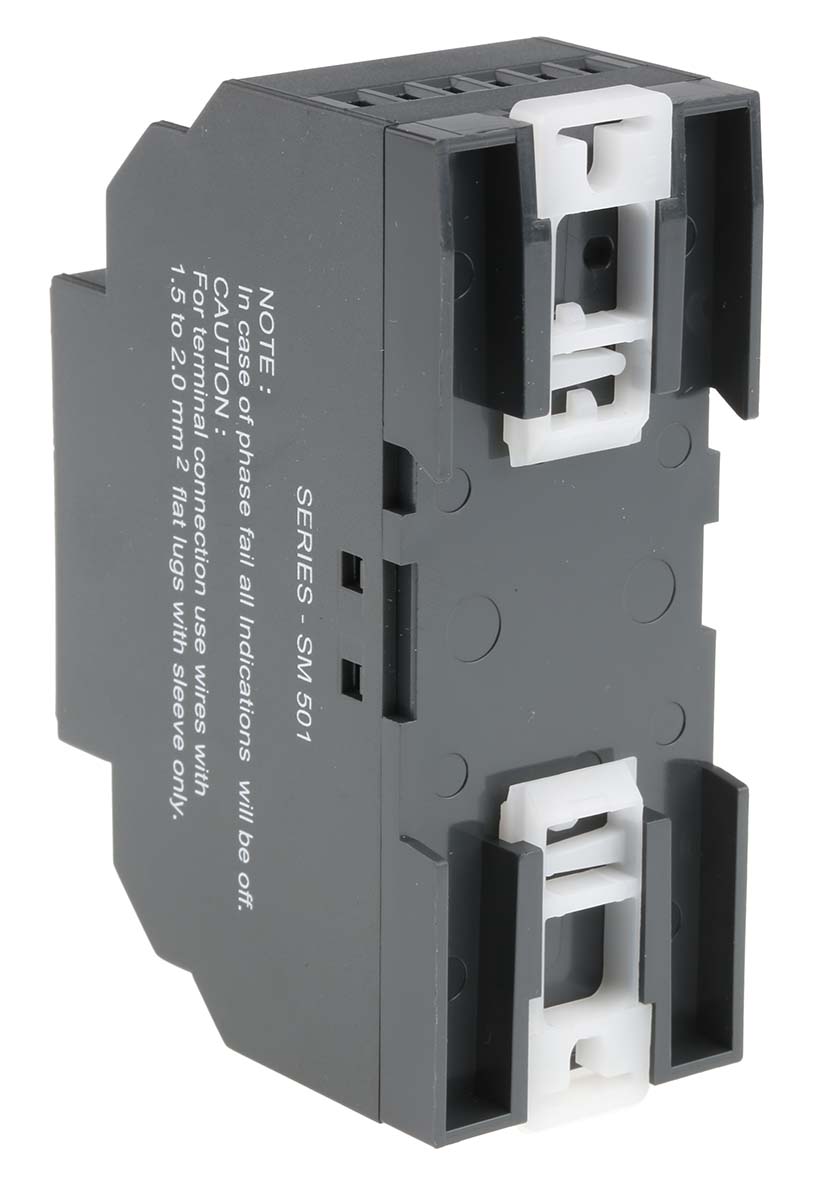

Voltage Monitoring Relay, 3 Phase, DPDT, DIN Rail

Monitoring Application:

Voltage

Electrical Phase:

3

Contact Configuration:

DPDT

Voltage Sensitivity:

Overvoltage, Undervoltage

Mounting Type:

DIN Rail

Maximum Current Sensed:

5A

Time Delay:

5 s, 0 → 15s

Frequency Sensing Range:

48 → 63Hz

Series:

SM 501

Height:

90mm

Dimensions:

60 x 36 x 90mm

Maximum Operating Temperature:

+55°C

Width:

36mm

Length:

60mm

Current Range:

Maximum of 5A

Operating Temperature Range:

+55°C

Minimum Operating Temperature:

-10°C
