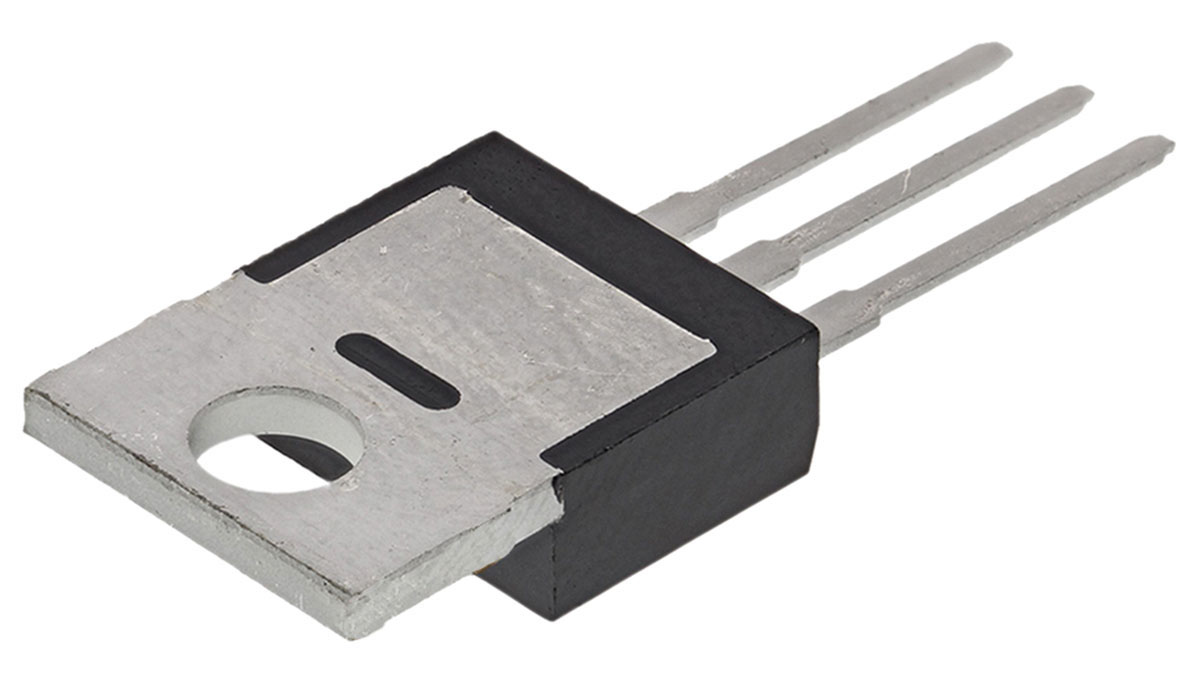

N-Channel MOSFET, 20 A, 55 V, 3-Pin TO-220AB PHP20N06T,127

Channel Type:

N

Maximum Continuous Drain Current:

20 A

Maximum Drain Source Voltage:

55 V

Package Type:

TO-220AB

Mounting Type:

Through Hole

Pin Count:

3

Maximum Drain Source Resistance:

75 mΩ

Channel Mode:

Enhancement

Maximum Gate Threshold Voltage:

4V

Minimum Gate Threshold Voltage:

2V

Maximum Power Dissipation:

62 W

Transistor Configuration:

Single

Maximum Gate Source Voltage:

-20 V, +20 V

Length:

10.3mm

Typical Gate Charge @ Vgs:

11 nC @ 10 V

Transistor Material:

Si

Width:

4.7mm

Maximum Operating Temperature:

+175 °C

Number of Elements per Chip:

1

Height:

9.4mm

Minimum Operating Temperature:

-55 °C
