The Infineon range of OptiMOS single P-Channel power MOSFETs are designed to give enhanced features meeting quality performances. Features include ultra-low switching loss, on-state resistance, Avalanche ratings as well as being AEC qualified for automotive solutions. Applications include dc-dc, motor control, battery management and load switching.
It has 150 °C operating temperature
Qualified according to JEDEC for target applications
Qualified according to JEDEC for target applications

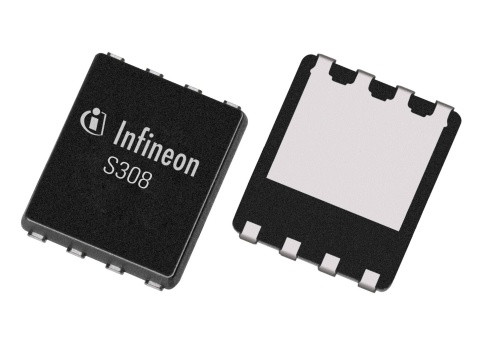

P-Channel MOSFET, 39.6 A, 30 V, 8-Pin PQFN 3 x 3 BSZ180P03NS3GATMA1
Manufacturer:
Infineon
Manufacturer Part No:
BSZ180P03NS3GATMA1
Enrgtech Part No:
ET21606514
Warranty:
Manufacturer
£ 0.15
Checking for live stock
Channel Type:
P
Maximum Continuous Drain Current:
39.6 A
Maximum Drain Source Voltage:
30 V
Package Type:
PQFN 3 x 3
Series:
OptiMOS P3
Mounting Type:
Surface Mount
Pin Count:
8
Maximum Drain Source Resistance:
0.018 O
Channel Mode:
Enhancement
Maximum Gate Threshold Voltage:
3.1V
Transistor Material:
Si
Number of Elements per Chip:
1
