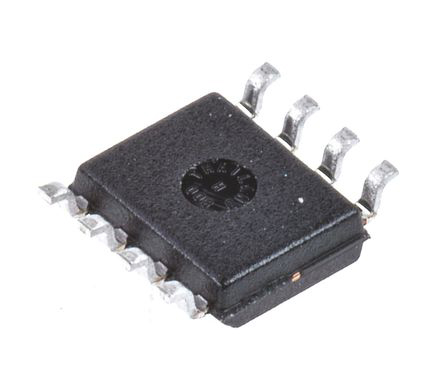

AS5162 12-Bit Magnetic Angle Position Sensor, ams AG The AS5162 is a contactless Hall-based magnetic position sensor for high accuracy angular measurement over a full turn of 360°. The integrated circuit is a 12-bit rotary position sensor with linear analogue output and overvoltage protection. 360º contactless high-resolution angular position sensing
Programmable start and end point of the application region
Saw tooth mode 1 to 4 slopes per revolution
Large air gap, low-cost magnets
Increased durability
