Intelligent Power Modules (IPM), CIPOS family, Infineon
The Control Integrated Power System (CIPOS) are families of highly integrated, compact power modules. They are designed to drive motors in home appliances, fan and pump applications. These energy-efficient Intelligent Power Modules (IPM) deliver increased power density with enhanced system ruggedness and reliability that improve motor system performance and energy efficiency.

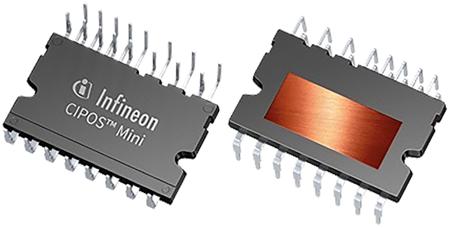

IKCM15H60GAXKMA2, AC Motor, Permanent Magnet Motor Intelligent Power Module, 2.8 V 24A 24-Pin
Manufacturer:
Infineon
Manufacturer Part No:
IKCM15H60GAXKMA2
Enrgtech Part No:
ET16792985
Warranty:
Manufacturer
£ 4.10
Checking for live stock
Motor Type:
AC Motor, Permanent Magnet Motor
Configuration:
3 Phase
Output Configuration:
Half Bridge
Maximum IGBT Collector Current:
24A
Maximum Output Current:
15A
Maximum Supply Voltage:
600 V
Maximum Collector Emitter Voltage:
2.8 V
Mounting Type:
Through Hole
Maximum Operating Supply Voltage:
450 V
Pin Count:
24
Minimum Operating Supply Voltage:
0 V
Typical Switching Frequency:
20 (Maximum)kHz
