Intelligent Power Modules (IPM), CIPOS family, Infineon
The Control Integrated Power System (CIPOS) are families of highly integrated, compact power modules. They are designed to drive motors in home appliances, fan and pump applications. These energy-efficient Intelligent Power Modules (IPM) deliver increased power density with enhanced system ruggedness and reliability that improve motor system performance and energy efficiency.

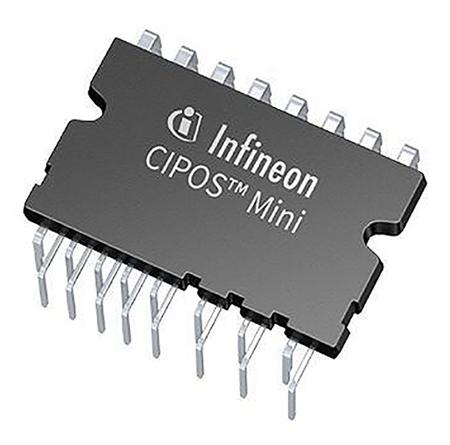

IKCM20L60GDXKMA1, AC Motor, Permanent Magnet Motor Intelligent Power Module, 2.1 V 40A 24-Pin
Manufacturer:
Infineon
Manufacturer Part No:
IKCM20L60GDXKMA1
Enrgtech Part No:
ET16792987
Warranty:
Manufacturer
£ 9.06
Checking for live stock
Motor Type:
AC Motor, Permanent Magnet Motor
Output Configuration:
Half Bridge
Configuration:
3 Phase
Maximum Output Current:
20A
Maximum IGBT Collector Current:
40A
Maximum Supply Voltage:
600 V
Maximum Collector Emitter Voltage:
2.1 V
Mounting Type:
Through Hole
Pin Count:
24
Maximum Operating Supply Voltage:
400 V
Minimum Operating Supply Voltage:
0 V
Typical Switching Frequency:
20 (Maximum)kHz
