PAXLA Multifunction Meter
The PAXLA is a versatile multifunction meter available as a DC volt, current or process meter with scaling and dual form C relay outputs. The meter is programmed through the front panel buttons and the use of jumpers. The RST key will also function as a front panel display reset.
Once the front panel programming is complete, the buttons can be disabled by a user input setting. 5-digit (14.2 mm) red LED display
Programmable scaling and decimal points
Programmable user input
Dual 5 amp form C relay
Universally powered
Optional custom unit overlay with backlight
Minimum and maximum display capture
NEMA 4X/IP65 sealed front bezel
Once the front panel programming is complete, the buttons can be disabled by a user input setting. 5-digit (14.2 mm) red LED display
Programmable scaling and decimal points
Programmable user input
Dual 5 amp form C relay
Universally powered
Optional custom unit overlay with backlight
Minimum and maximum display capture
NEMA 4X/IP65 sealed front bezel

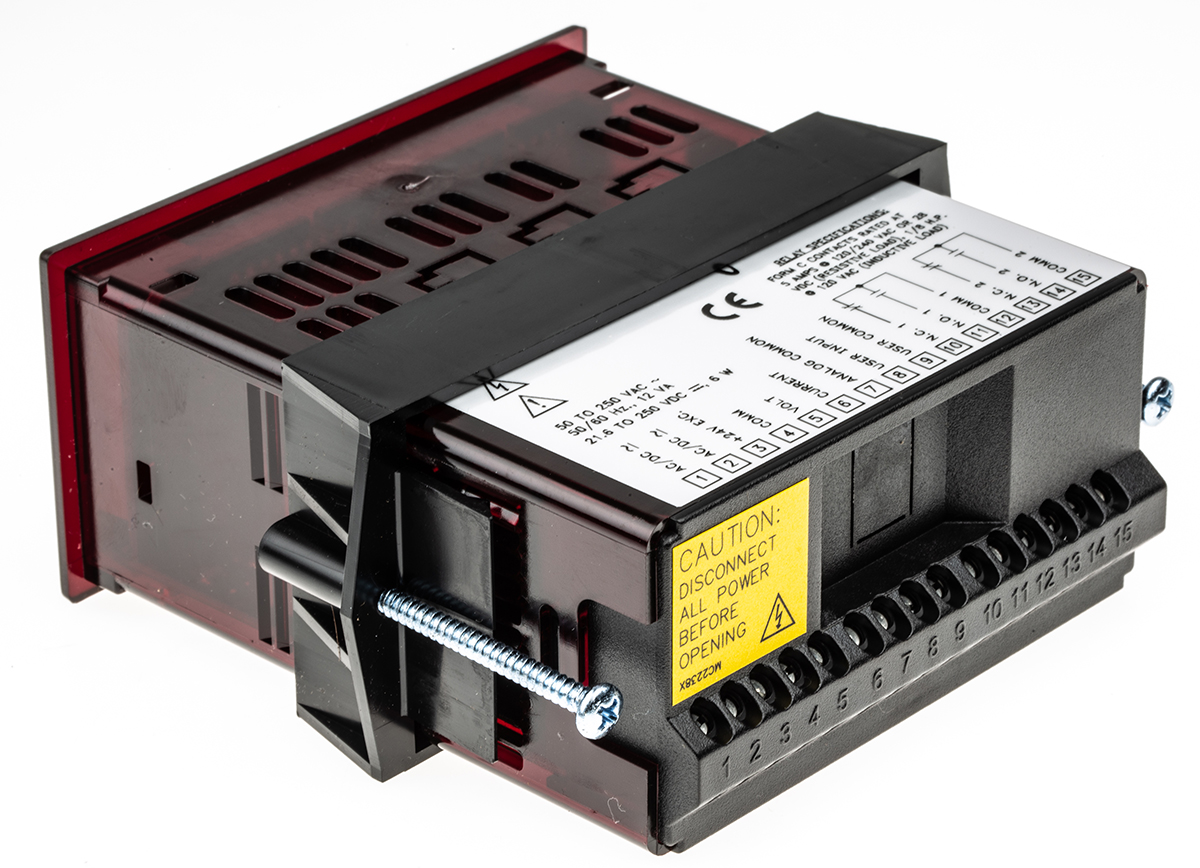

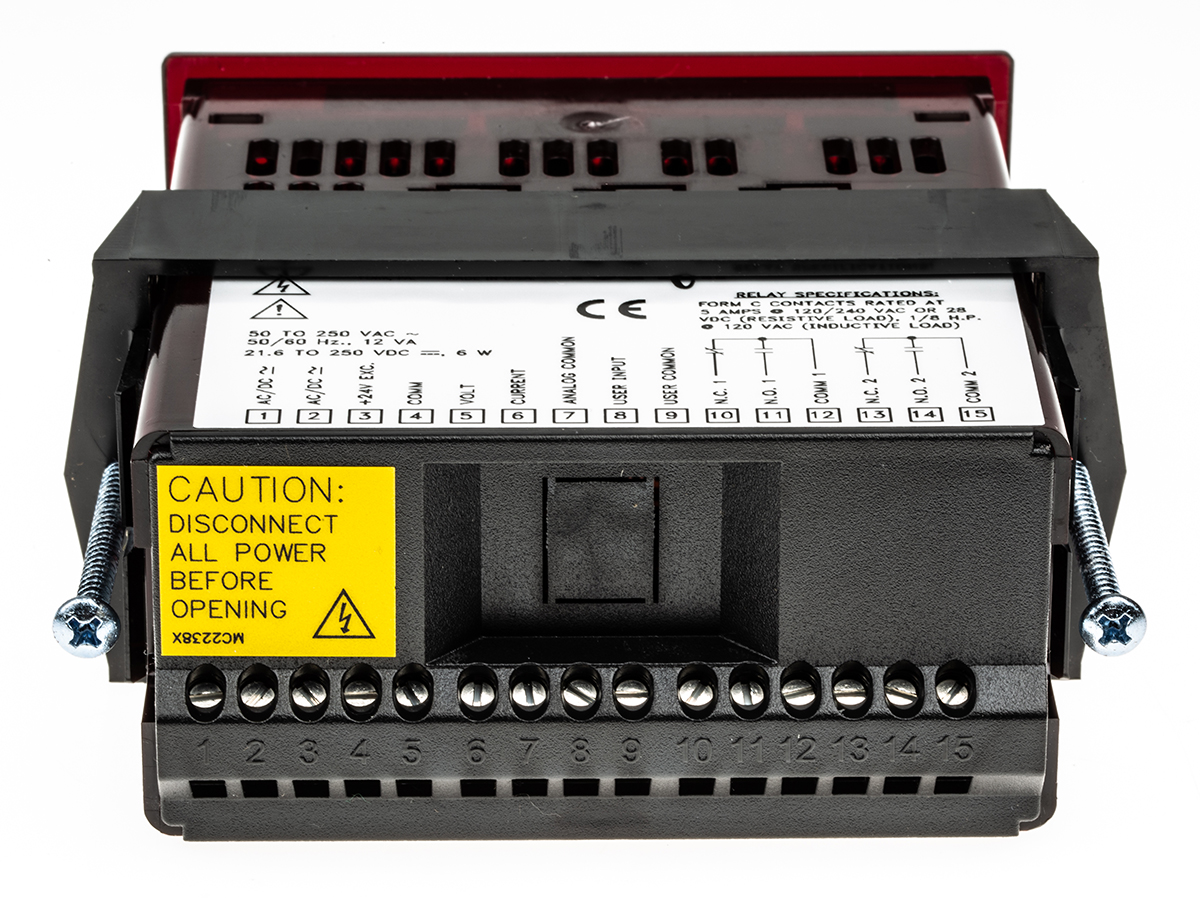

PAXLA LED Digital Panel Multi-Function Meter for Current, Voltage, 45mm x 92mm
Manufacturer:
Red Lion
Manufacturer Part No:
PAXLA000
Enrgtech Part No:
ET14073895
Warranty:
Manufacturer
£ 233.20
Checking for live stock
Properties Measured:
Current, Voltage
Display Type:
LED
Cutout Height:
45mm
Cutout Width:
92mm
Depth:
104.1mm
Number of Digits:
5
Digit Height:
14.2 mm
Minimum Temperature:
0°C
Maximum Temperature:
+50°C
Measurement Range:
-19999 → 99999
Approvals:
CE Certified, cUL Recognized, UL Approved
Meter Type:
Electronic
