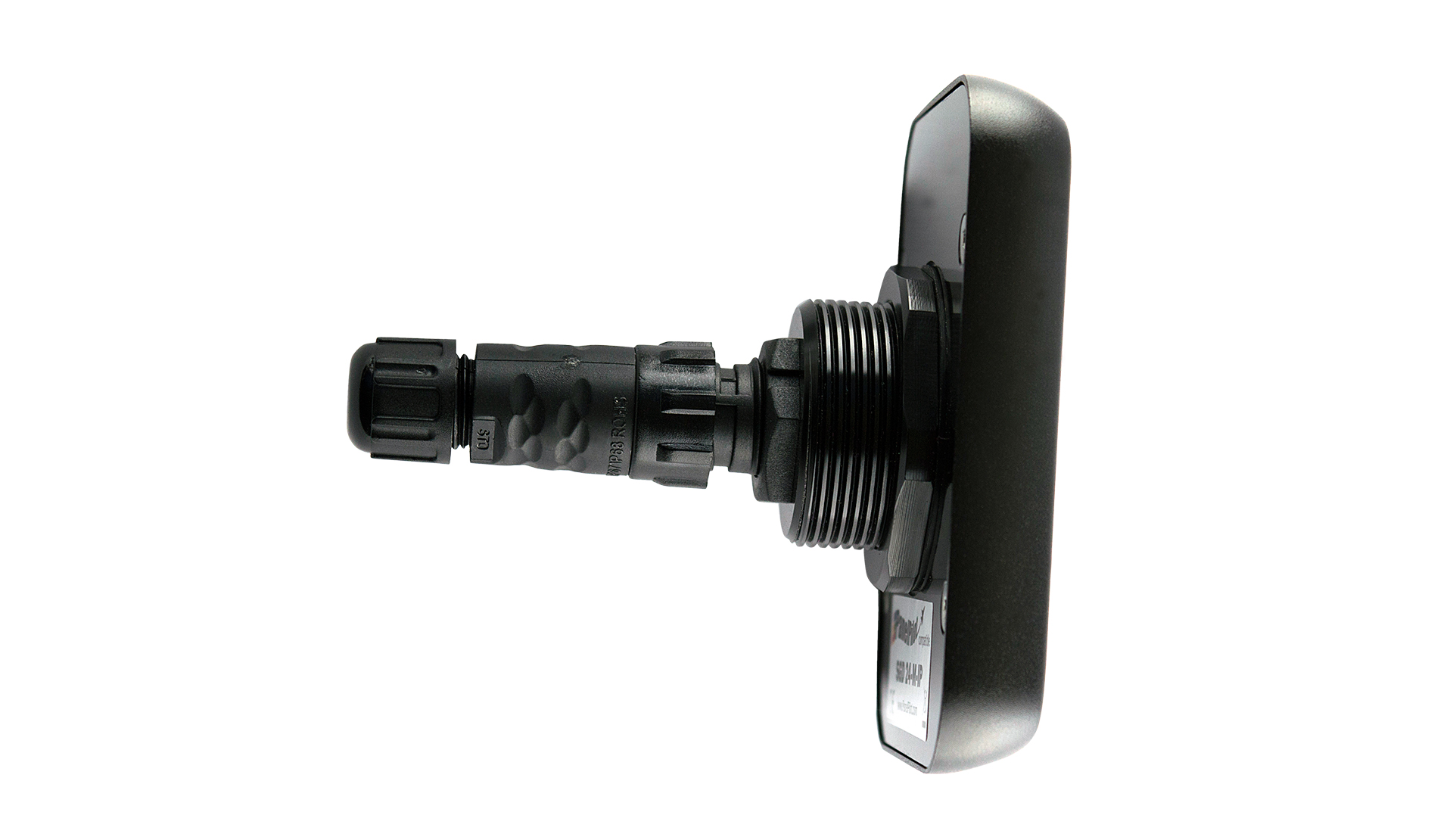

2.4" Waterproof Programmable TFT 4-20mA The SGD 24-M-IP420 is a programmable panel meter featuring 4-20mA analogue inputs, alarm outputs and 2.4" TFT colour display. The device is housed in a IP67 / NEMA 6 rated enclosure with rugged, scratch resistant window.

Using the PanelPilot Software users can choose from a multitude of configurations which can be customised to their needs. Bar-graphs, tank level, analogue style and tend graphs are all available to be customised with colours, text labels units and input scaling before uploading to the devices display. Features and Benefits 2.4" colour TFT screen
IP-67 and NEMA 6 rated
Compatible with Windows 7, 8.1 and 10
Programmable with the USB interface
4V - 30V d.c. operating voltage
0-40V d.c. measurement range
2 analogue inputs & alarm outputs
IP-67 12 way connection Certifications IP67 rated
NEMA-6 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007 Applications Marine
Test & Measurement
Industrial
Energy
