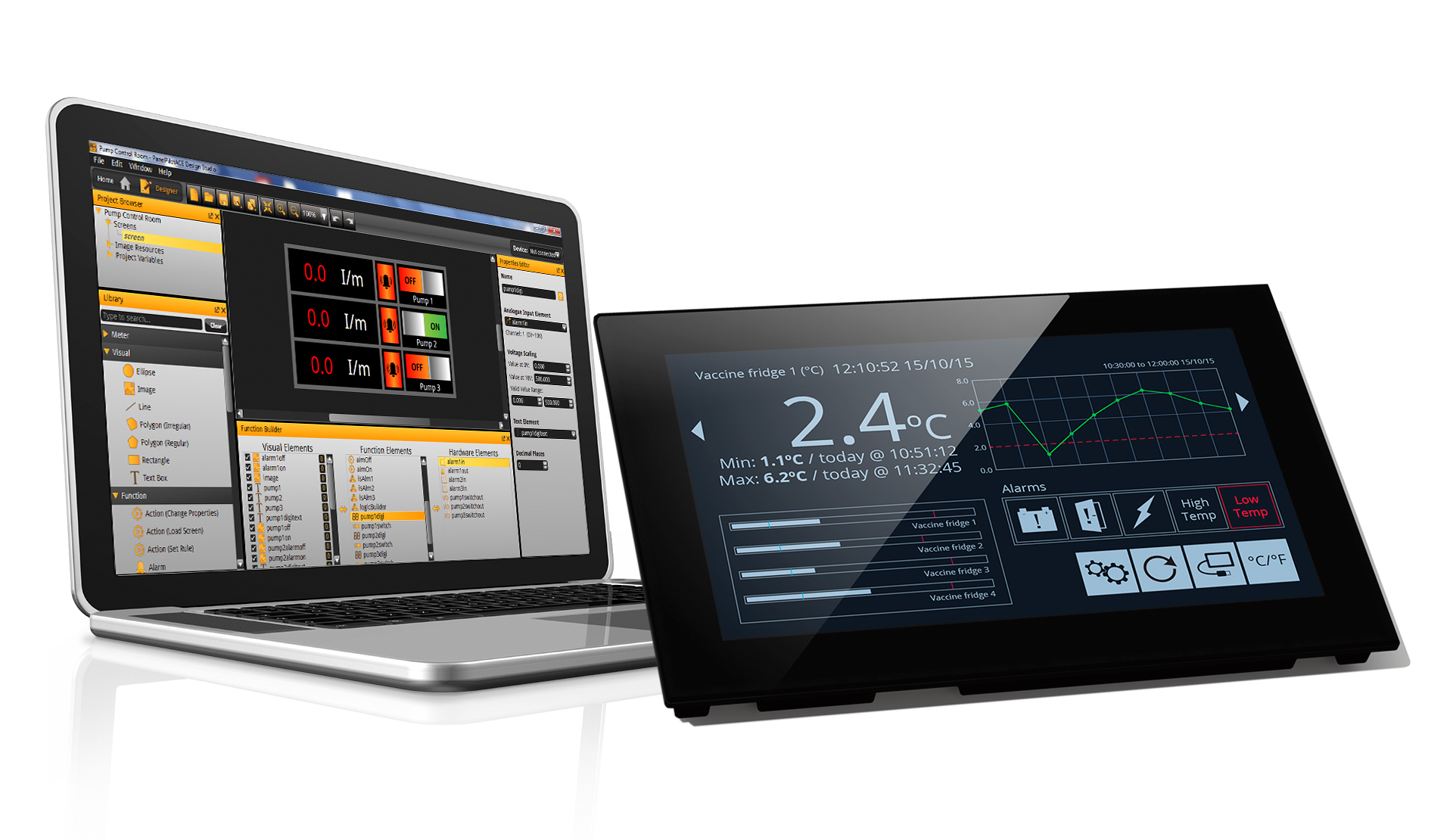

7" All-in-One HMI & PLC with Analogue, Digital, PWM & Serial Interfaces The PanelPilotACE SGD 70-A uses Lascar's PanelPilotACE Design Studio, a free drag-and-drop style software package that allows for rapid development of advanced user interfaces and panel meters. The HMI and PLC all-in-one solution features a wealth of hardware interfaces including four 16-bit bipolar analogue inputs (to a maximum of ±40V d.c.), eight digital input/output pins, two alarm outputs, four 8-bit PWM outputs, PID Control, Ethernet FTP for logged data, multi-channel data logging and trend graphs, serial RS232 and RS485 and an additional add on boards to measure temperature or support CANBus. 7" TFT display with 16.7M colours
Capacitive touch screen
Four 16-bit to ±40V d.c.
5 to 30V d.c. (1A typical at 5V d.c.) supply Users can program their display using the free PanelPilotACE design studio software. With a wide range or resources the software allows the creation of anything from simple meters and dials, through to advanced user interfaces.

The PanelPilotACE Design Studio is compatible with Windows 7, 8 and 10 and can be downloaded for free from www.lascarelectronics.com/software/panelpilot-software Applications Industrial Equipment
HVAC
Energy Management Equipment
Automotive
Scientific Equipment
Process Control & Automation
PLC / HMI / Data Acquisition
Marine
Medical & Healthcare Equipment
