The Gossen Metrawatt profitest prime AC is a test instrument for testing the effectiveness of protective measures in electrical installations per IEC 60364-6, machines and systems per IEC 60204-1, low-voltage switchgear and control gear assemblies per IEC 61439-1, PV systems per DIN EN 62446-1 and electric charging stations per DIN EN 61851-1.
Combined RCD test with continuously rising ramp, time to trip, tripping current
Insulation measurement up to 1000 V with rising ramp
Testing of RCMs and IMDs
Measurement of leakage and differential current
Measurement of temperature and humidity
Insulation measurement up to 1000 V with rising ramp
Testing of RCMs and IMDs
Measurement of leakage and differential current
Measurement of temperature and humidity

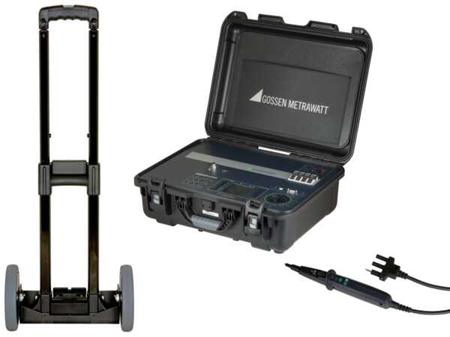

PROFITEST PRIME Starter Package Multifunction Tester, 1000V
Manufacturer:
Gossen MetrawattManufacturer Part No:
M516k
Enrgtech Part No:
ET27304529
Warranty:
Manufacturer
£ 4707.64
Checking for live stock
Loop Impedance Test Type:
2 Wire, 2 Wire (Non-Trip Range), 3 Wire
Automatic RCD Test:
Yes
RCD Ramp Test:
Yes
Model Number p:
PROFITEST PRIME Starter Package
Non-Tripping:
No
Insulation Test Voltage:
1000V
