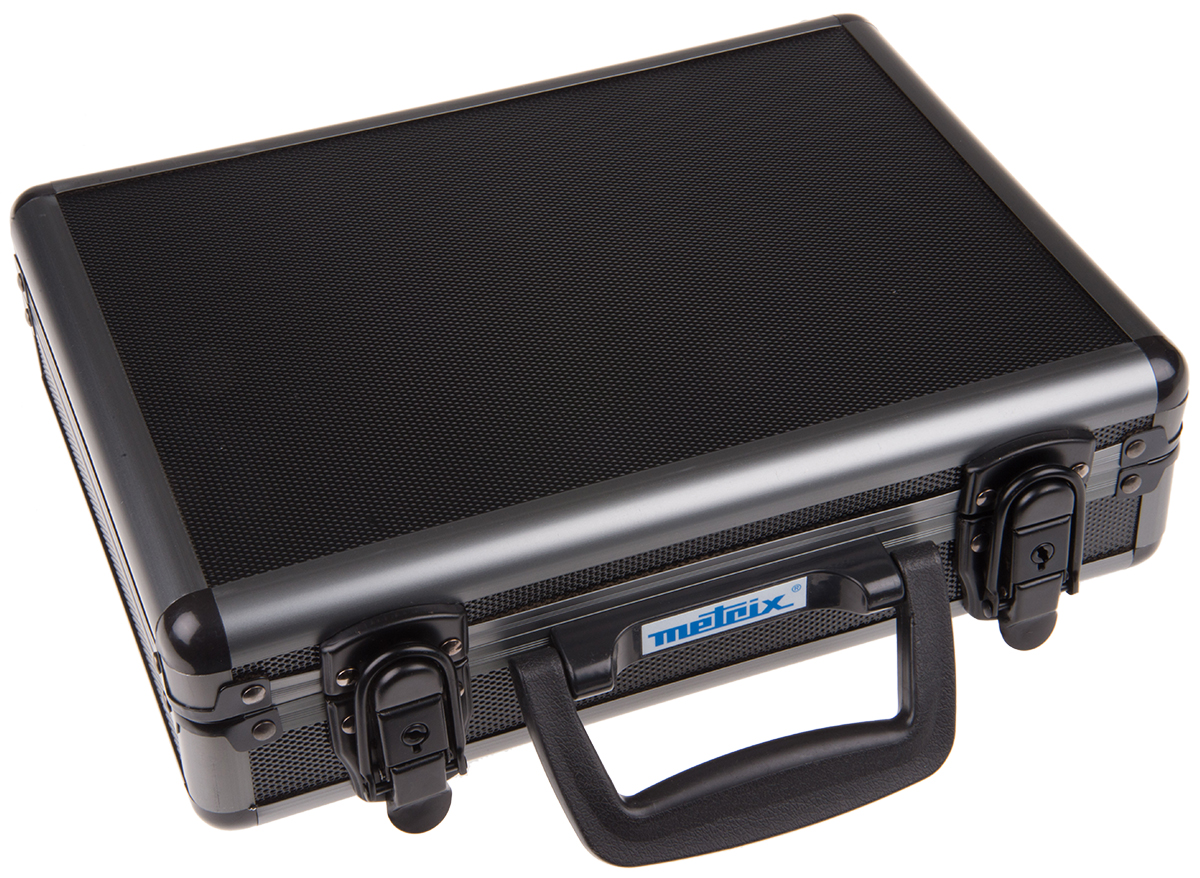

MX1 General Purpose Heavy Duty Multimeter in Carry Case Combines the advantages of an analogue instrument with the safety features and reliability of a digital instrument 9 DC voltage ranges: 150mV to 1500V
6 AC voltages ranges: 5V to 1500V
7 DC current ranges: 50μA to 10A
6 AC current ranges: 500mA to 10A
3Ω ranges to 20kΩ
-6 to +15dB scale for AC measurements
Diode test capability with Ωx1 range
Mains proof ohms range
10kA fuse protection on current ranges
High speed continuity bleeper (<150Ω)
Audible warning if >5V is applied to Ω range
Visual warning if protection fuses blown
Locking system prevents test leads falling out

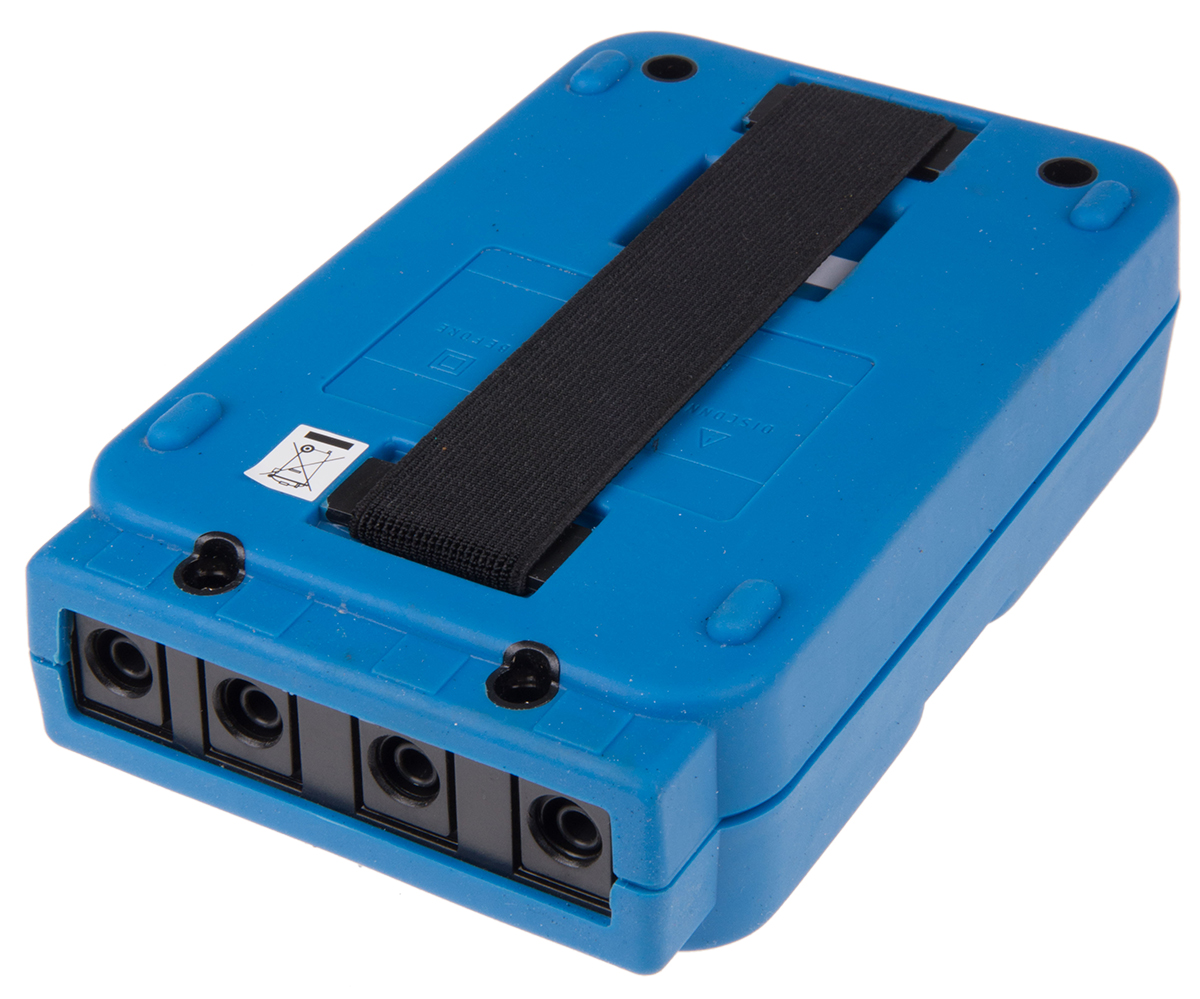

IP65 rated case which cannot be opened with test leads connected, plus moulded-on shock absorber
Safety Rating: EN61010-1 CAT II 600 V
