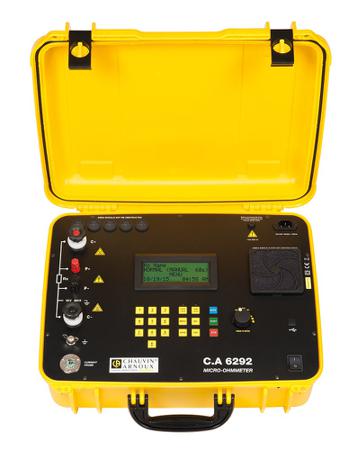

The Chauvin Arnoux CA 6292 comes in a worksite box with clearly identified connection terminals to limit the risk of error and thus allow rapid connection of the measurement leads. The measurement results are instantly displayed on the backlit LCD screen for perfect readability. The CA6292 can be configured from the rotary button located on the device, or via a PC using its USB link. It allows measurements in complete safety, both for people and for equipment. The BSG method makes it possible to maintain the earthing on both sides of the measured object in order to eliminate any risk due to electromagnetic induction phenomena. In this mode, the use of the optional MR 6292 clamp allows current measurements up to 50 ADC. It has adjustable test current up to 200 A
It has internal cooling system
It provides storage of up to 8,000 measurements
It has site housing for harsh environment
