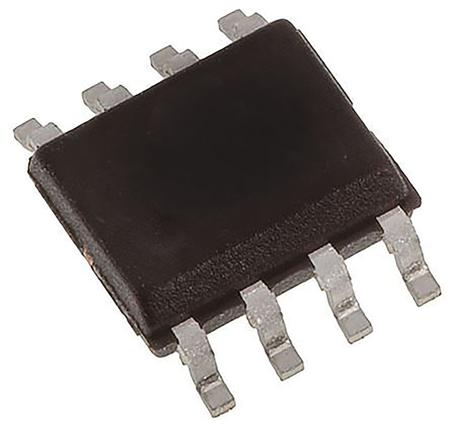

AD8055ARZ , Low Noise, Op Amp, 10 V, 8-Pin SOIC

Amplifier Type:

Low Noise

Mounting Type:

Surface Mount

Package Type:

SOIC

Power Supply Type:

Dual, Single

Number of Channels per Chip:

1

Pin Count:

8

Typical Single Supply Voltage:

10 V

Typical Dual Supply Voltage:

±5V

Typical Slew Rate:

1400V/µs

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+125 °C

Rail to Rail:

No

Typical Voltage Gain:

71 dB

Typical Input Voltage Noise Density:

6nV/√Hz

Height:

1.5mm

Width:

4mm

Length:

5mm

Dimensions:

5 x 4 x 1.5mm
