The TLP521 are single channel optocouplers. Each channel is composed of a Gallium Arsenide infra-red emitting diode and a silicon photo transistor. Package style for this devices is 4 pin, with surface mount, butt cut and gull wing options available.
Performance guaranteed over -55°C to +125°C temperature range
High current transfer ratio
7500V electrical isolation
High current transfer ratio
7500V electrical isolation

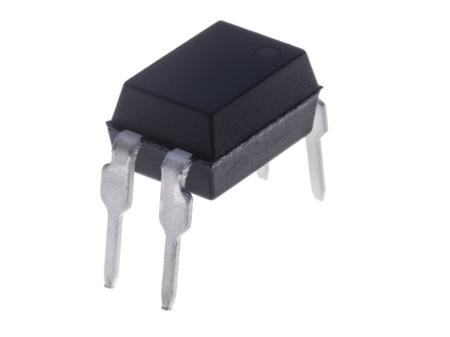

, TLP521 AC Input NPN Phototransistor Output Optocoupler, Through Hole, 4-Pin DIP
Manufacturer:
Isocom
Manufacturer Part No:
TLP521
Enrgtech Part No:
ET16772913
Warranty:
Manufacturer
£ 0.19
Checking for live stock
Mounting Type:
Through Hole
Output Device:
NPN Phototransistor
Maximum Forward Voltage:
1.3V
Number of Channels:
1
Number of Pins:
4
Package Type:
DIP
Input Current Type:
AC
Typical Rise Time:
4µs
Maximum Input Current:
50 mA
Isolation Voltage:
5300 Vrms
Maximum Current Transfer Ratio:
600%
Typical Fall Time:
3µs
