The TLP621, TLP621-2 and TLP621-4 series of optically coupled isolator consist of an infrared light emitting diode and an NPN silicon photo transistor in a space efficient Dual In Line Plastic Package.
AC Isolation Voltage 5300VRMS
CTR Selections Available
Wide Operating Temperature Range -30°C to +100°C APPLICATIONS:
Computer Terminals
Industrial System Controllers
Measuring Instruments
Signal Transmission between Systems of Different Potentials and Impedances
CTR Selections Available
Wide Operating Temperature Range -30°C to +100°C APPLICATIONS:
Computer Terminals
Industrial System Controllers
Measuring Instruments
Signal Transmission between Systems of Different Potentials and Impedances

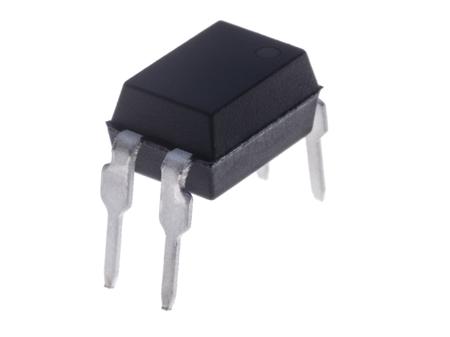

, TLP621 DC Input NPN Phototransistor Output Optocoupler, Through Hole, 2-Pin DIP
Manufacturer:
Isocom
Manufacturer Part No:
TLP621
Enrgtech Part No:
ET16772956
Warranty:
Manufacturer
£ 0.19
Checking for live stock
Mounting Type:
Through Hole
Output Device:
NPN Phototransistor
Maximum Forward Voltage:
1.3V
Number of Channels:
1
Number of Pins:
2
Package Type:
DIP
Input Current Type:
DC
Typical Rise Time:
2µs
Maximum Input Current:
50 mA
Isolation Voltage:
5300 Vrms
Maximum Current Transfer Ratio:
600%
Typical Fall Time:
3µs
