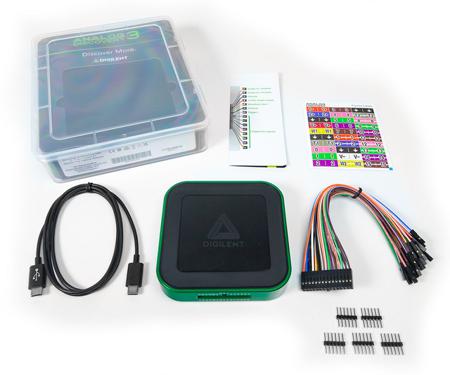

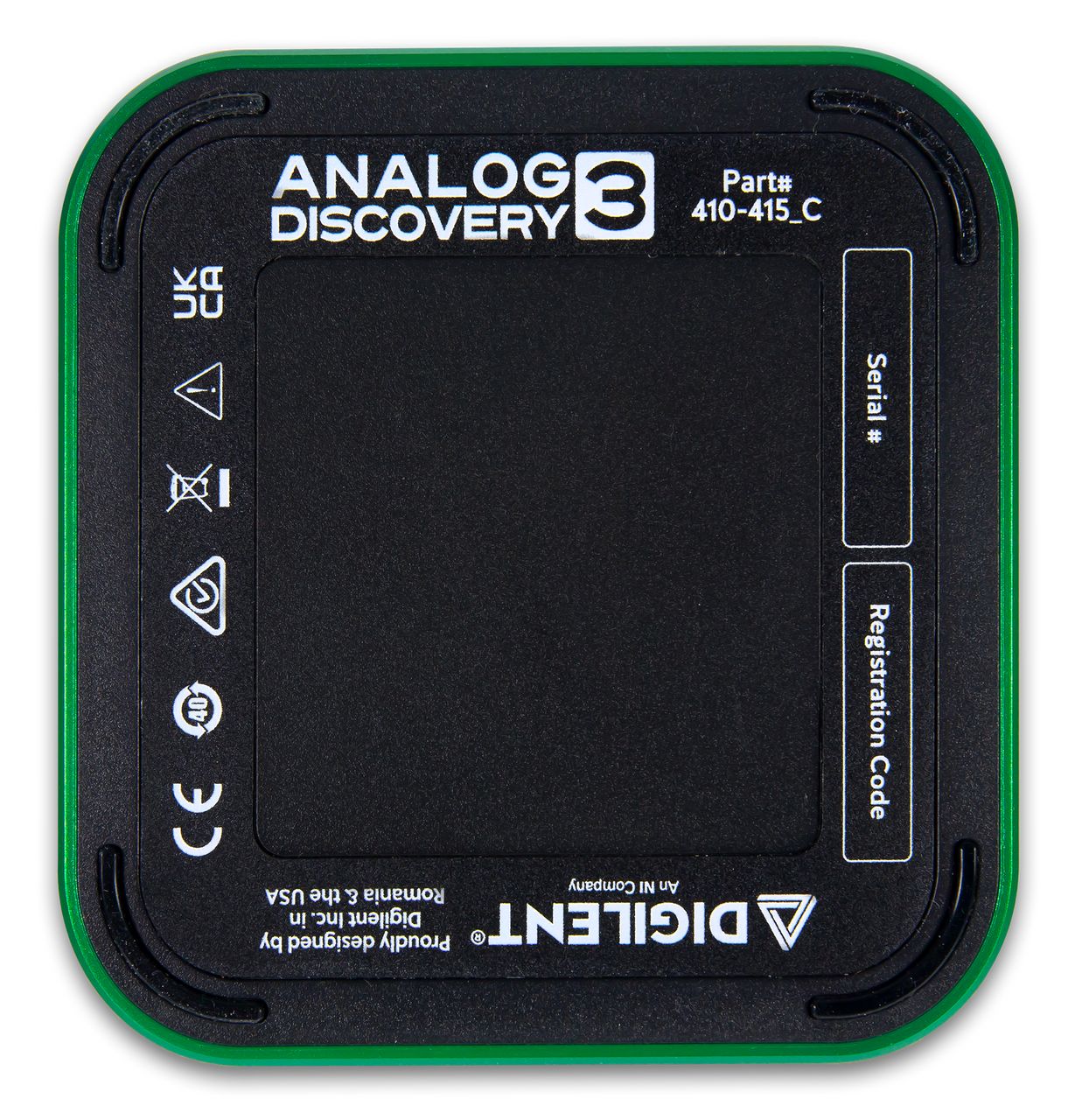

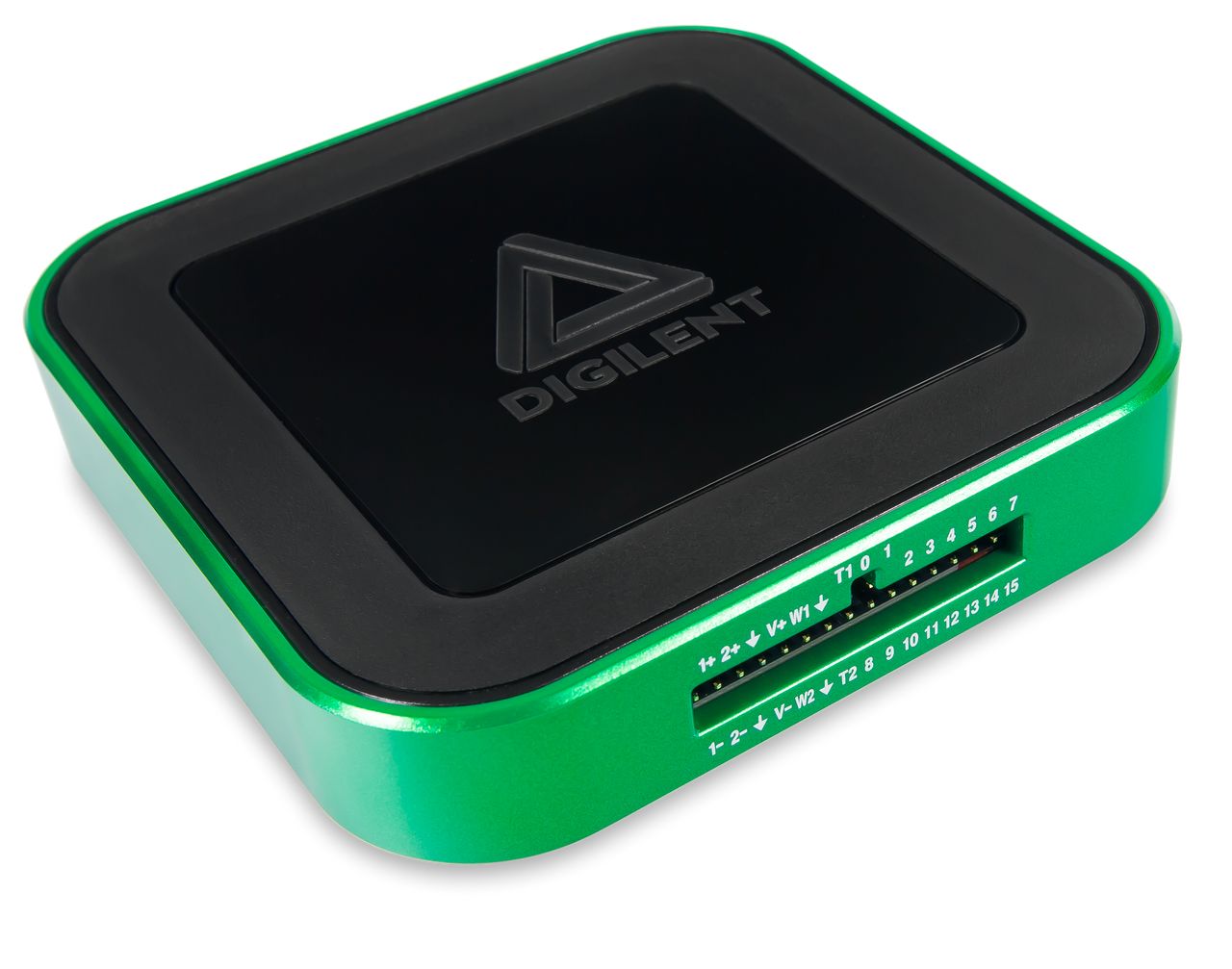

Analog Discovery 3 (AD3) Digital USB Oscilloscope and more! The Digilent 410-415 is a versatile, multi-function test and measurement instrument, also known as the Analog Discovery 3 which can measure, visualise, generate, record and control mixed signal circuits. It's a compact and portable device that combines the capabilities of an oscilloscope, logic analyser, waveform generator, pattern generator, and variable power supply. Key features: 2-channel oscilloscope - can simultaneously display two analog signals
30 MHz bandwidth - accurately measures signals up to 30 MHz
125 MS/s sample rate - captures signals at a rate of 125 million samples per second
16-channel logic analyser - can monitor 16 digital signals
Waveform generator - such as sine waves, square waves, and triangular waves.
Pattern generator for testing digital circuits
Variable power supply - provides adjustable voltage and current for powering electronic circuits
USB-powered
Software-based
Includes a software development kit (SDK) for custom applications and automation
Applications: The Digilent 410-415 is a versatile instrument that offers a wide range of features and capabilities, making it a suitable choice for both educational and professional purposes. It can be used in the lab, field or at home for:
Education - teaching electronics, signal processing, and measurement techniques
Hobbyists - suitable for various DIY projects and electronics experimentation
Field service - for troubleshooting electronic equipment
