JST PHD Series 2.0mm Shrouded PCB Header Connectors
PHD series 2.0 mm wire to board PCB mount header connectors with a double row contact configuration and full shrouding to prevent incorrect mating and the intrusion of flux and other contaminants. These PHD 2.00 mm PCB headers have a compact, low profile design with a height of just 8.8 mm after mating enabling them to meet the demand for high density and low profile connections.

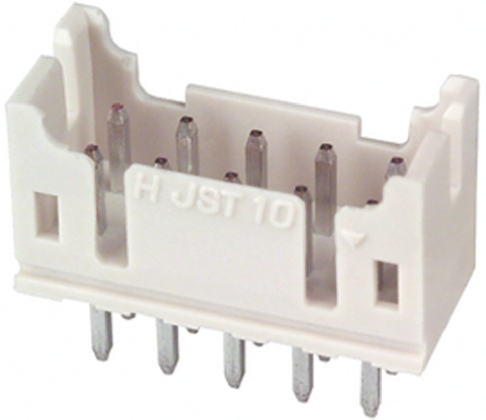

PHD Series Straight Through Hole PCB Header, 10 Contact(s), 2.0mm Pitch, Shrouded
Manufacturer:
JST
Manufacturer Part No:
B10B-PHDSS(LF)(SN)(P)
Enrgtech Part No:
ET14004594
Warranty:
Manufacturer
£ 0.39
Checking for live stock
Series:
PHD
Pitch:
2.0mm
Number of Contacts:
10
Body Orientation:
Straight
Shrouded/Unshrouded:
Shrouded
Mounting Type:
Through Hole
Connector System:
Wire to Board
Termination Method:
Solder
Contact Material:
Copper Alloy
Contact Plating:
Tin
Current Rating:
3.0A
Voltage Rating:
250.0 V
