Board Connector PH Series Surface Mount Header, Low Insertion Force Top Entry
The JST PH Connectors are designed to meet the demand for high density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.
Features & Benefits
• Reliable contact
• Fully shrouded header
• Current rating of 2A
• Printed circuit board retention mechanism
• Surface mount model
• Voltage rating of 100 V ac
• Temperature range from -25°C to 85°C
• Wire size of 32 AWG to 24 AWG
• Number of contacts varies from 2 to 16 pins
• Contact material is brass
• Tin plated contact
• UL, CSA and TUV certified

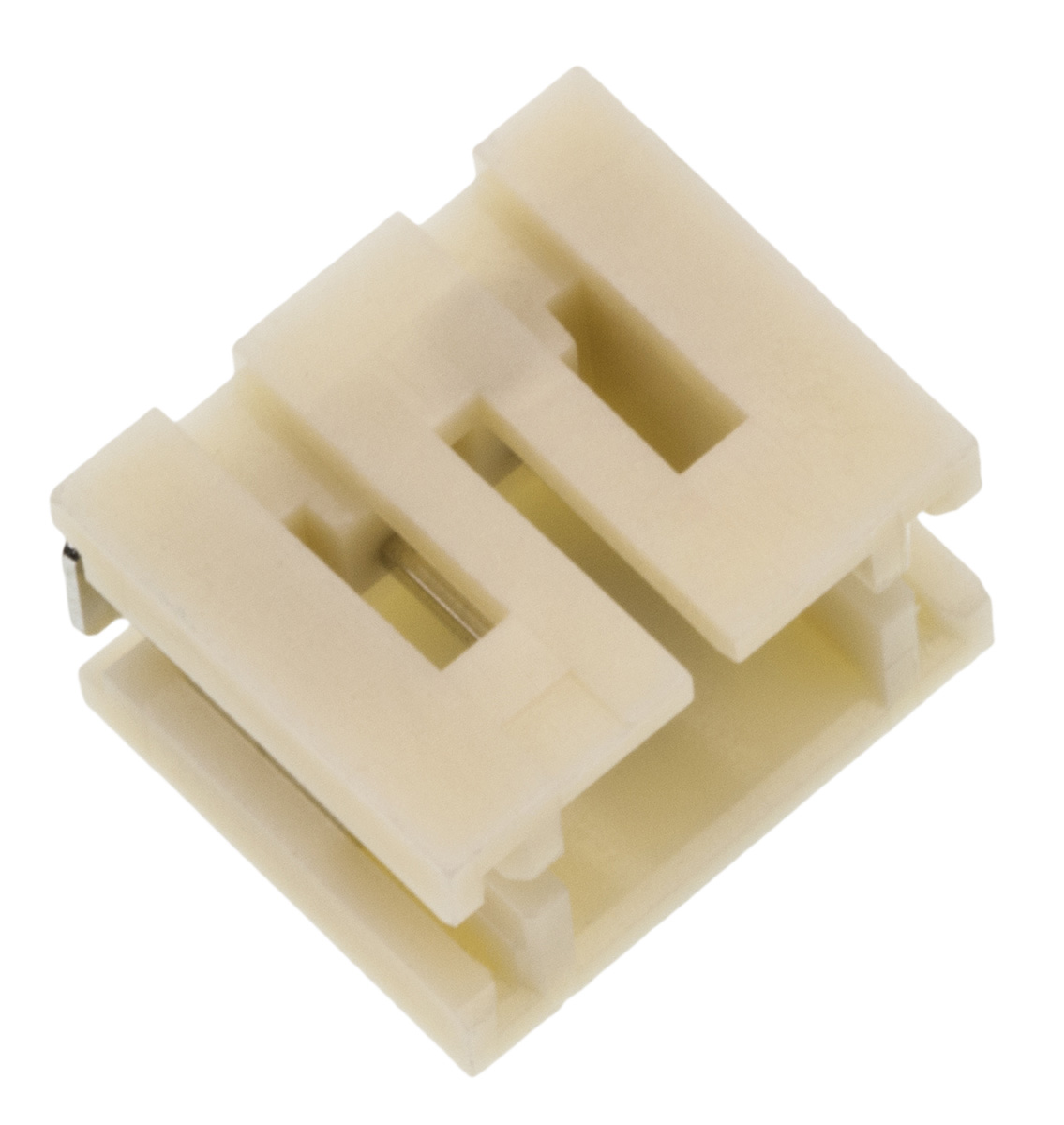

PH Series Straight Surface Mount PCB Header, 2 Contact(s), 2.0mm Pitch, 1 Row(s), Shrouded
Manufacturer:
JST
Manufacturer Part No:
B2B-PH-SM4-TB(LF)(SN)
Enrgtech Part No:
ET14004605
Warranty:
Manufacturer
£ 0.44
Checking for live stock
Series:
PH
Pitch:
2.0mm
Number of Contacts:
2
Number of Rows:
1
Body Orientation:
Straight
Shrouded/Unshrouded:
Shrouded
Connector System:
Wire to Board
Mounting Type:
Surface Mount
Termination Method:
Solder
Contact Material:
Copper Alloy
Contact Plating:
Tin
Current Rating:
2.0A
