Dynamic D-3100 Series Headers
The TE Connectivity Dynamic Range D-3100 Series Headers have a Tin plated Retention Leg for increased stability. The PCB solder tails of the D-3100 Series Headers are Tin plated and the contact Tabs are Gold plated. The recommended PCB thickness for these D-3100 Series Headers is 1.0 to 1.6 mm.

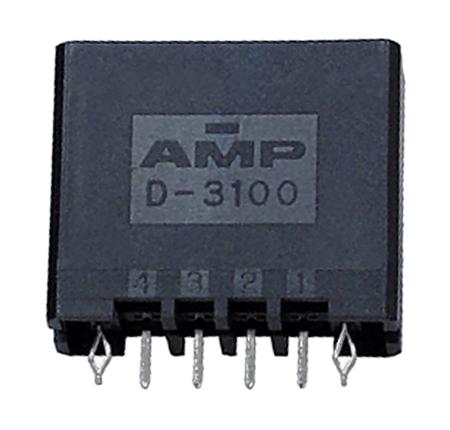

Dynamic 3000 Series Straight Through Hole PCB Header, 4 Contact(s), 3.81mm Pitch, 1 Row(s), Shrouded
Manufacturer:
TE Connectivity
Manufacturer Part No:
1-178314-2
Enrgtech Part No:
ET14124308
Warranty:
Manufacturer
£ 2.67
Checking for live stock
Series:
Dynamic 3000
Pitch:
3.81mm
Number of Contacts:
4
Number of Rows:
1
Body Orientation:
Straight
Shrouded/Unshrouded:
Shrouded
Mounting Type:
Through Hole
Connector System:
Wire to Board
Termination Method:
Solder
Contact Material:
Copper Alloy
Voltage Rating:
250.0 V
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=96274&DisplayLogo=False
