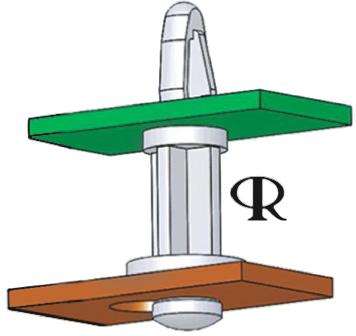

Key Slot with Locking Bayonet Nose
A PCB support that is designed to fit and lock into key slots on the chassis
Easily installed or removed by hand
Made from natural nylon 66 for high durability
Minimal protrusion of 2.5mm on underside of chassis
PCB/Chassis Thickness 1.6mm
PCB hole diameter 4mm
Chassis hole diameter 7.1mm
Outside diameter 10.2mm
Easily installed or removed by hand
Made from natural nylon 66 for high durability
Minimal protrusion of 2.5mm on underside of chassis
PCB/Chassis Thickness 1.6mm
PCB hole diameter 4mm
Chassis hole diameter 7.1mm
Outside diameter 10.2mm
Essentra KSLBN 6 01 KSLBN 6 01, 9.5mm High Nylon PCB Support for 4mm PCB Hole, 5.8mm Base
Manufacturer:
Essentra
Manufacturer Part No:
KSLBN 6 01
Enrgtech Part No:
ET13967254
Warranty:
Manufacturer
£ 12.82
Checking for live stock
PCB Support Type:
Key Slot Support
Overall Height:
21.1mm
Body Height:
9.5mm
Support Base Dimensions:
5.8mm
PCB Hole Diameter:
4mm
PCB Thickness:
1.6mm
Material:
Nylon
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=14746&DisplayLogo=False
