The WAGO Digital impulse interface connects magnetostrictive position sensors equipped with a start/stop interface. After receiving a read pulse, these sensors deliver a time-delayed reply impulse. The time delay is proportional to the sensor distance. Each sensor may have up to four position transmitters (permanent magnets). Their position data can be accessed serially by the controller and are stored in the process image of the fieldbus coupler as a 24-bit value. Differential type signal RS 422
DIN 35 rail mount

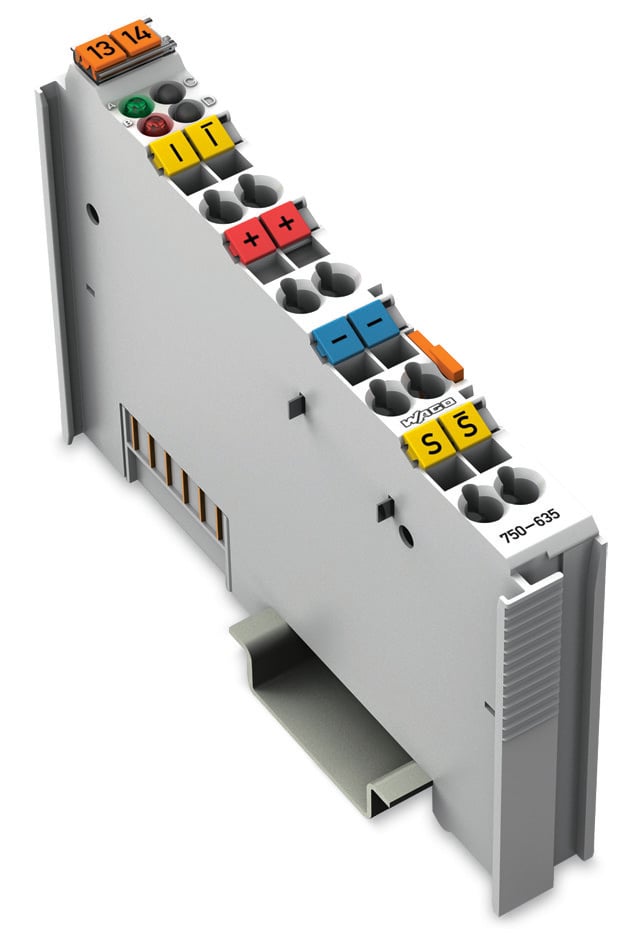

WAGO 750 Series Interface Module for Use with PLC, 24 V dc

Manufacturer:
Manufacturer Part No:
750-635
Enrgtech Part No:
ET28300452
Warranty:
Manufacturer
Checking for live stock
Accessory Type:
Interface Module
Series:
750
For Use With:
PLC
Supply Voltage:
24 V dc
pdf icon
Datasheet - 750-635-c6245ed2(datasheets)
