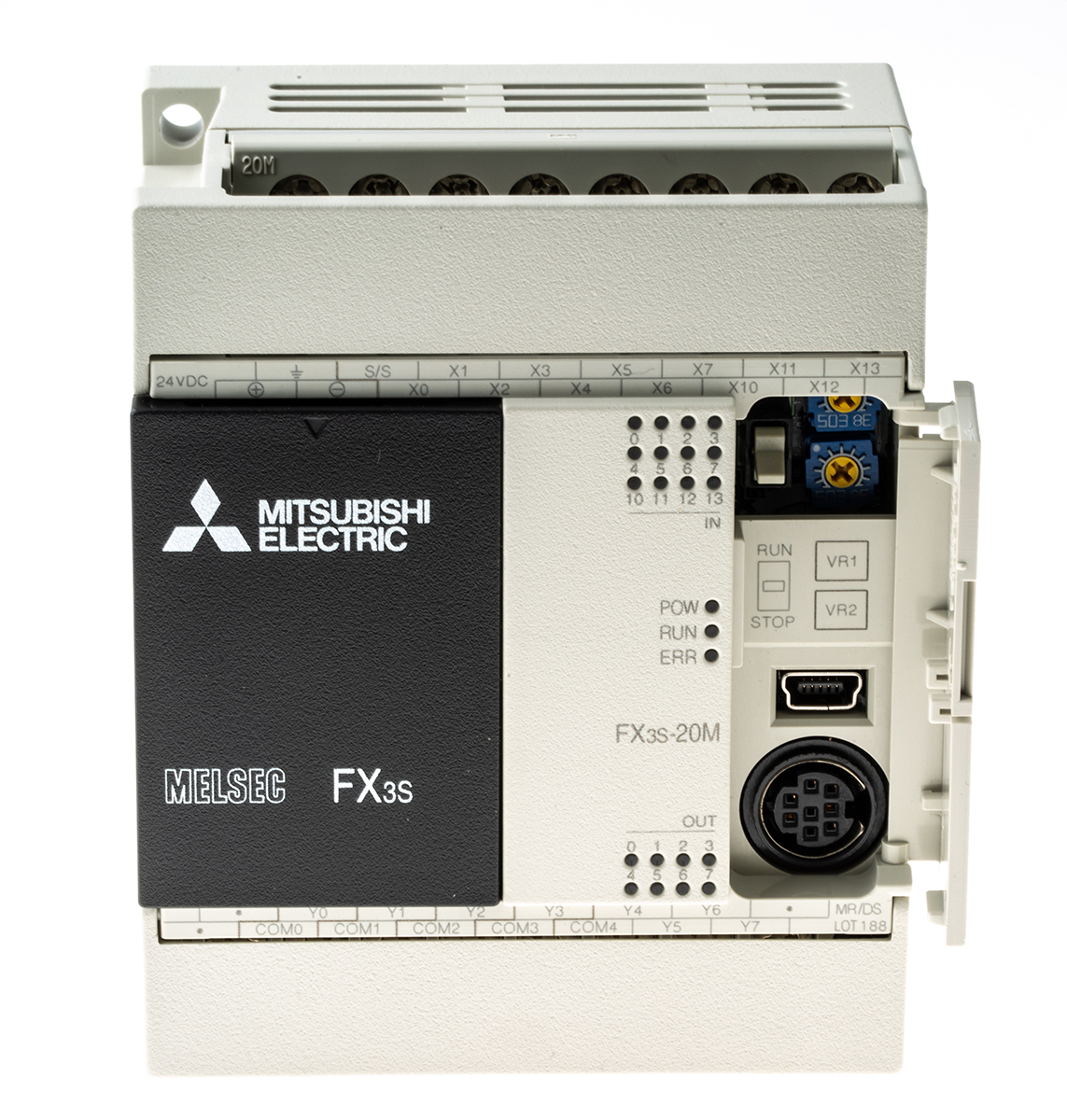

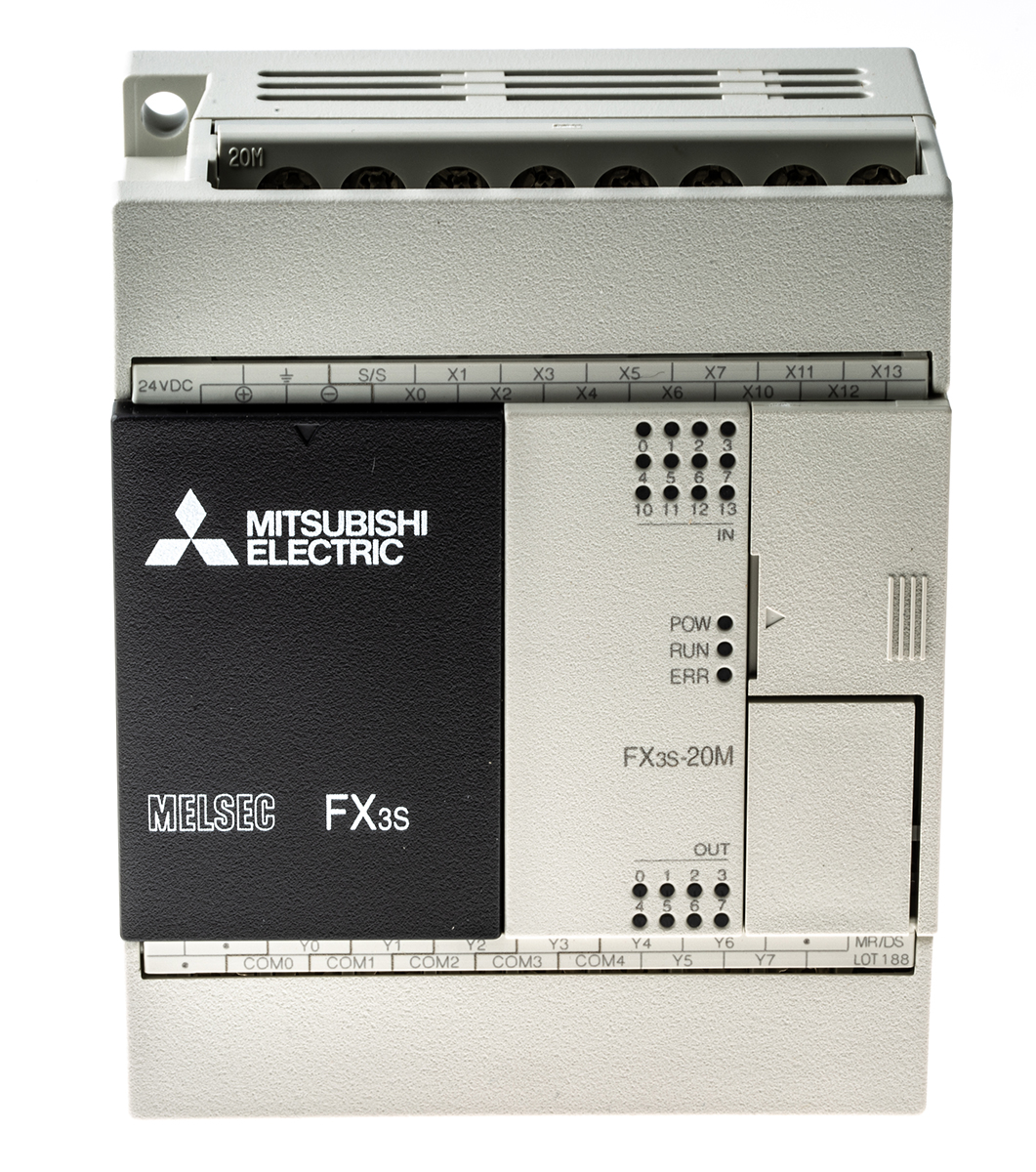

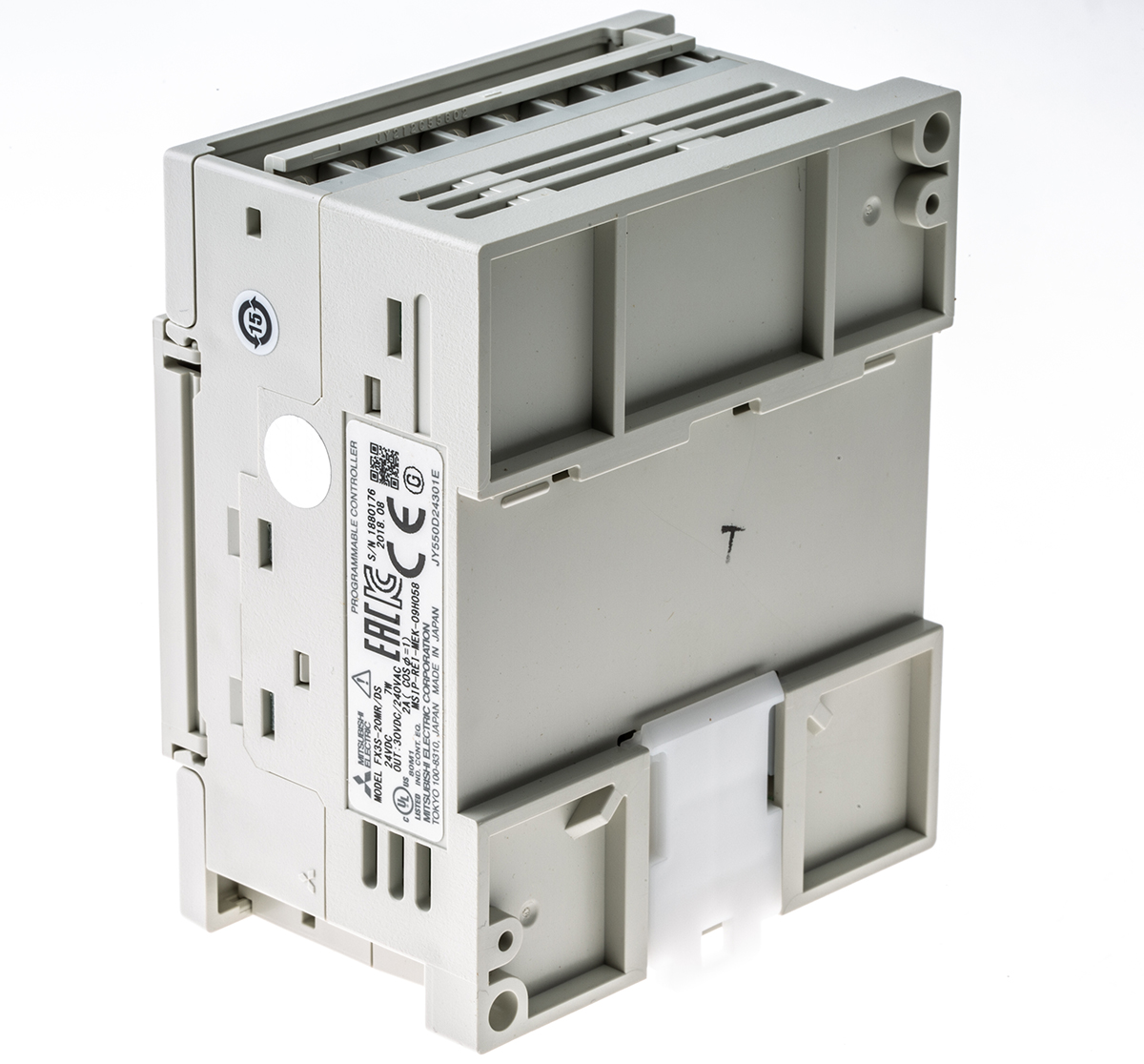

Mitsubishi PLC CPU The Mitsubishi FX series 3rd generation basic, compact and compatible programmable logic controller (PLC) has 12 digital inputs (type 24VDC sink/source) and 8 relay outputs. It has RS-232C/RS-422/USB programming communication and also Ethernet and Modbus networking. It provides a fit and forgets PLC solution for space and cost-conscious applications requiring up to 30 I/O. This minimum-expandability and the battery-less maintenance-free controller is perfect for handling straightforward processes and it can be hidden in locations without regular maintenance activities. Features and Benefits High performance with minimal size
Integrated power supply (AC powered)
Maintenance-free EEPROM memory
Power supply of 24VDC
Ample memory capacity (4000 steps) and device ranges
Built-in variable analogue potentiometers
Built-in USB port for the programming communication function to enable high-speed communication at 12Mbps
Built-in positioning control
Integrated real-time clock
Increased functionality using expansion boards and special adapters
Programming with GX Works2 or GX Works2 FX
Operation temperature ranges between 0°C and 55°C Applications Industrial automation
Robotics
Automobile industry Certifications ANSI/ESD S20.20:2014
BSEN 61340-5-1:2007
