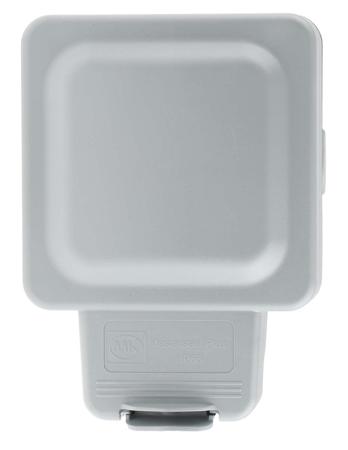

MK Electric Plug Socket The MK Electric MasterSeal plus series 1 gang flush mount unswitched plug socket has a current rating of 13A and voltage rating of 250VAC. It is specifically designed to provide power and control in environments heavily exposed to dust and water splashing. It offers total dust ingress protection and is protected against high-pressure water jets from any direction. The socket can seal around virtually any standard 13A plug including moulded plugs allowing a safe connection for any appliance. An improved catch eases the opening and closing of the lid, whilst ensuring the integrity of the seal. The seal is fixed to the mounting frame of the product, enabling rapid installation and removing the risk of error when placing a floating gasket. Features and Benefits Terminal screws are backed out and captive
Fixed gasket speeds installation
Grey in colour
Patented gel seal
Rear drill holes
Manufactured from recycled polycarbonate for impact and environmental protection
Type-G British
Number of poles are 2
Operating temperature ranging between -5°C and 40°C Applications Industrial
Commercial
Agricultural Certifications IP66 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
