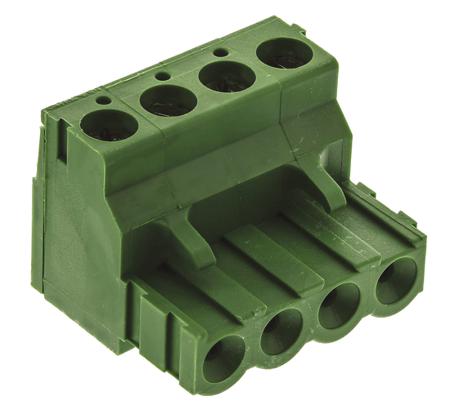

TE Connectivity 5.08mm TERMI-BLOK Right Angle Stacking Terminal Block Plug Connector
TERMI-BLOK 5.08mm vertical PCB right angle side stackable terminal block plug connectors with retention latches, polarization key slots and an interlocking feature. These TERMI-BLOK 5.08mm terminal block PCB plug connectors have M3 screw clamp terminals and are made from green polyamide 6.6 GF.
Wire size 12-30 AWG
Retention latch
Polarization key
Mates with header stock number 710-0110 typical
Retention latch
Polarization key
Mates with header stock number 710-0110 typical
, 5.08mm Pitch, Buchanan, 4 Way, Right Angle, Pluggable Terminal Block, Plug, Cable Mount, Screw
Manufacturer:
TE Connectivity
Manufacturer Part No:
282807-4
Enrgtech Part No:
ET13958737
Warranty:
Manufacturer
£ 1.52
Checking for live stock
Pluggable Terminal Block Type:
Plug
Number of Contacts:
4
Pitch:
5.08mm
Series:
Buchanan
Number of Rows:
1
Body Orientation:
Right Angle
Mounting Type:
Cable Mount
Termination Method:
Screw
Current Rating:
15A
Voltage Rating:
300 V ac
Colour:
Green
Material:
Nylon
