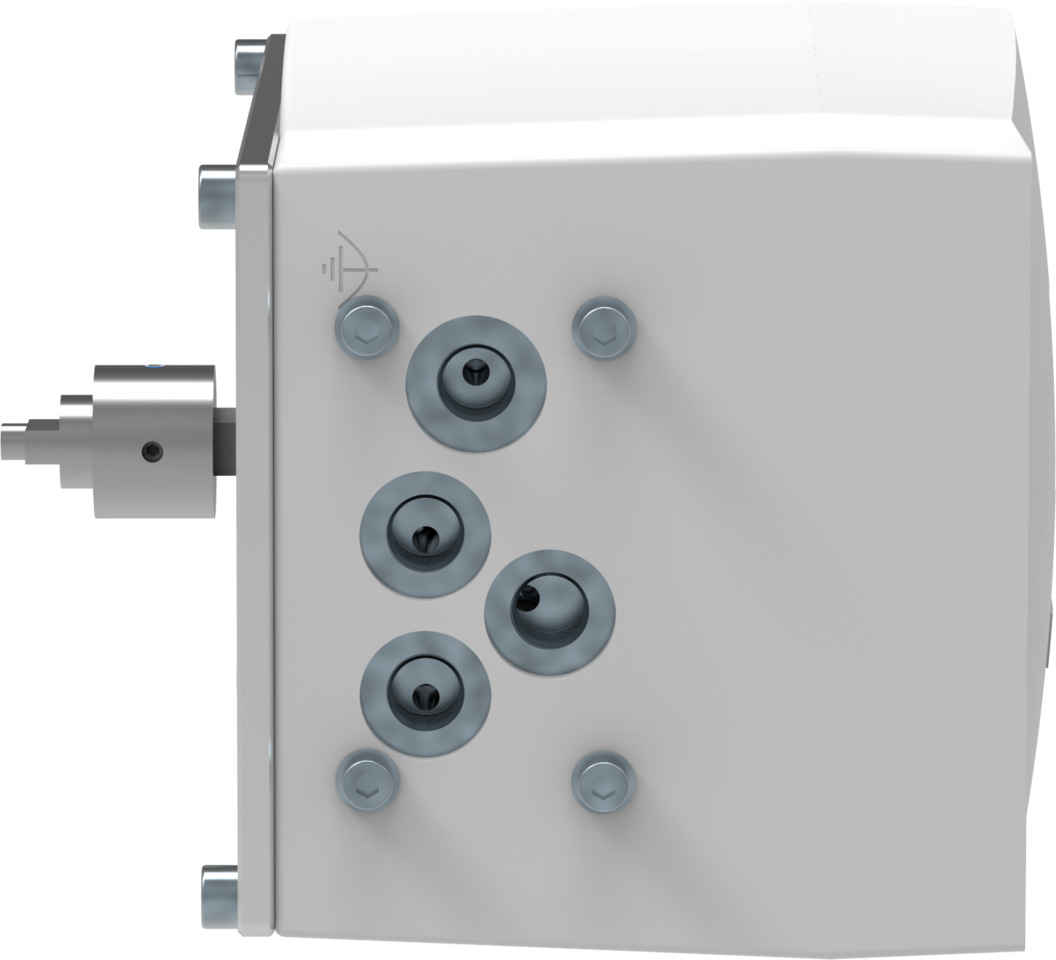

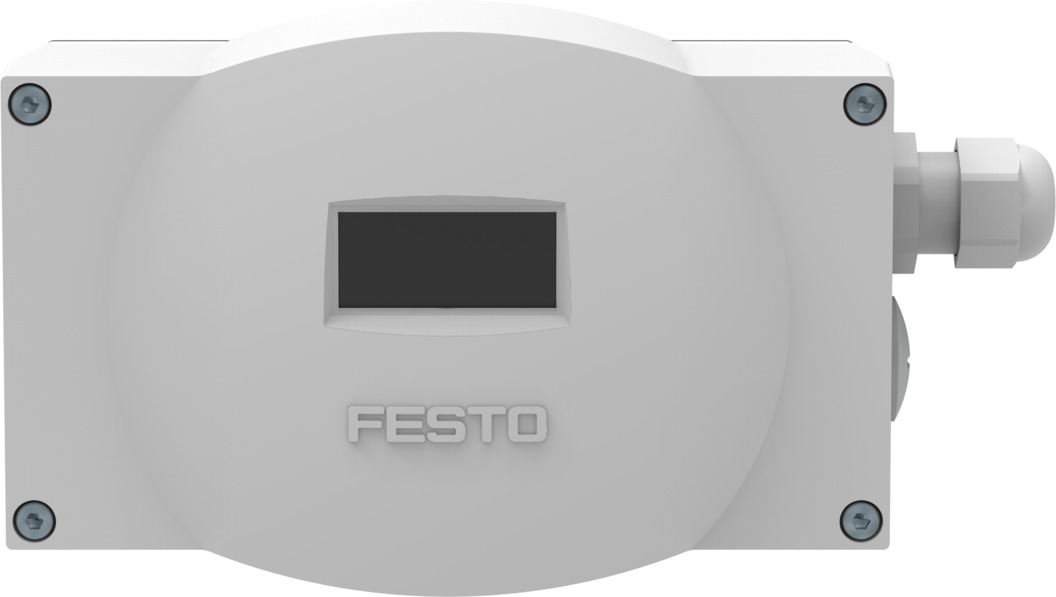

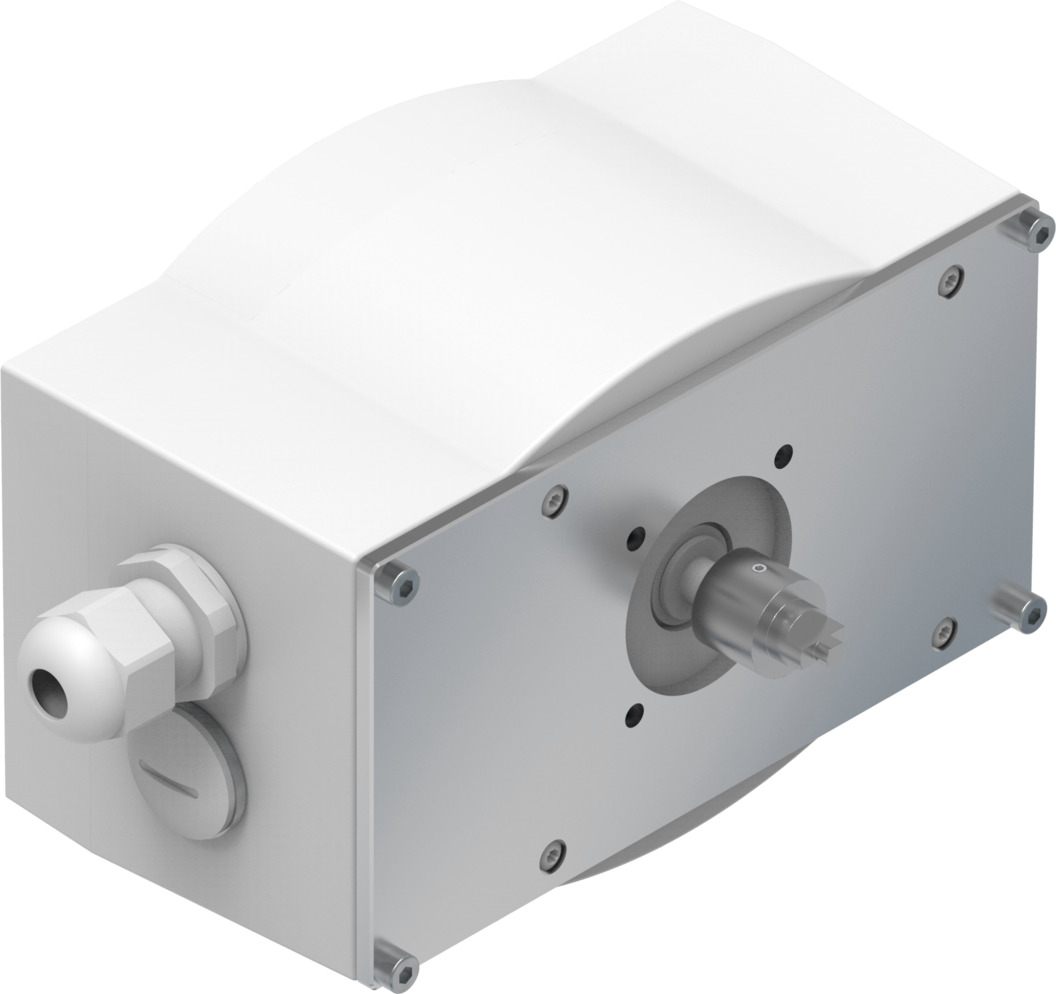

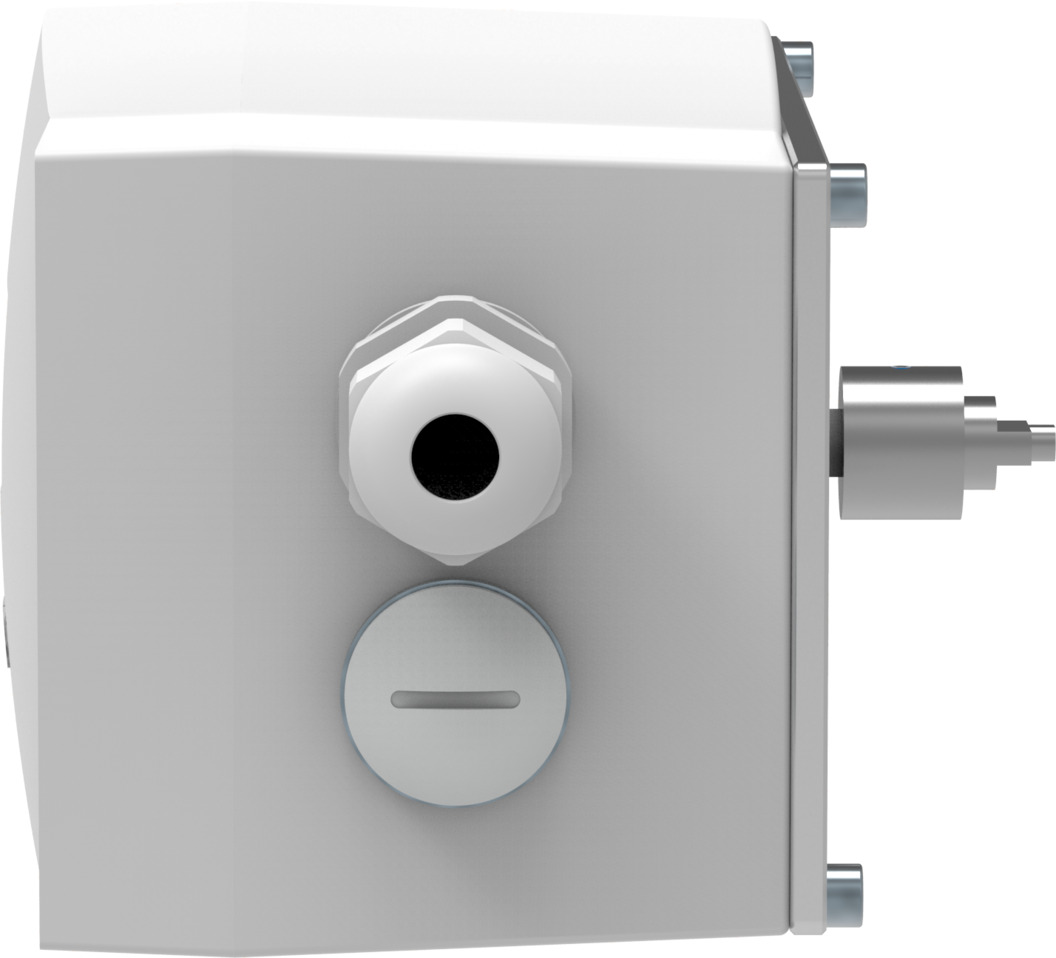

CMSX Quarter Turn Actuator Positioners
The CMSX positioner for double-acting quarter turn actuators for control of shut off or ball valves in process automation.
Features and Benefits
• Standard nominal flow rate: 50 L/min (136-6725 and 136-6726), 130 L/min (136-6728)
• Safety instructions: adjustable/opening/closing (136-6725 and 136-6726), retaining (136-6728)
• Setpoint Value: 0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 10 V
• Ambient temperature: -5 °C to 60 °C
• Operating Pressure: 3 bar to 8 bar
• Backlit LCD
• IP65 protection
• UV resistant
• CE Marked to EU directive for EMC
• RoHS compliant
• Safety instructions: adjustable/opening/closing (136-6725 and 136-6726), retaining (136-6728)
• Setpoint Value: 0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 10 V
• Ambient temperature: -5 °C to 60 °C
• Operating Pressure: 3 bar to 8 bar
• Backlit LCD
• IP65 protection
• UV resistant
• CE Marked to EU directive for EMC
• RoHS compliant
Pneumatic Sensor, 21.6 → 26.4V, 3929313
Manufacturer:
Festo
Manufacturer Part No:
CMSX-P-S-C-U-F1-D-50-A
Enrgtech Part No:
ET16815047
Warranty:
Manufacturer
£ 685.94
Checking for live stock
Supply Voltage:
21.6 → 26.4V
Model Number p:
3929313
