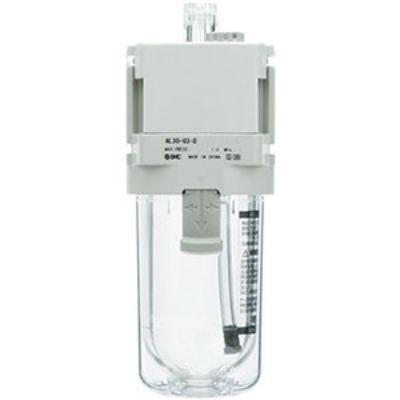

The SMC modular lubricator from AL-D series is suitable for body size 30, it comes with G type pipe threads, the port size is for this product is 1/4.
The set pressure is 0.05 MPa to 0.85 MPa
It has a polycarbonate bowl, and a relieving type exhaust mechanism
It has a polycarbonate bowl, and a relieving type exhaust mechanism
G 1/4 6000L/min Pneumatic Air Lubricator, 0.1MPa to 10 bar, AFM-D Series Series
Manufacturer:
SMC
Manufacturer Part No:
AL30-F02-D
Enrgtech Part No:
ET26021797
Warranty:
Manufacturer
£ 38.27
Checking for live stock
Port Connection:
G 1/4
Manufacturer Series:
AFM-D Series
Fill Under Pressure:
No
Maximum Flow Rate:
6000L/min
Typical Flow Rate:
30L/min
Maximum Operating Pressure:
10 bar
Minimum Operating Pressure:
0.1MPa
