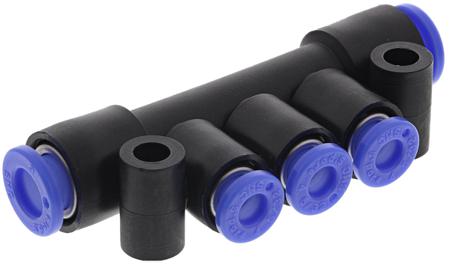

KM 3 Outlet Manifold Push In 6 mm Push In 4 mm

Number of Outlet Ports:

3

Outlet Port:

Push In 4 mm

Number of Inlet Ports:

1

Inlet Port:

Push In 6 mm

Manufacturer Series:

KM

Material:

PBT

Maximum Operating Pressure:

1 MPa

Maximum Operating Temperature:

+60°C

Connection Style:

Tube-to-Tube

Outlet Port - Tube Size:

4mm

Outlet Port - Connection Type:

Push In

Inlet Port - Connection Type:

Push In

Minimum Operating Temperature:

-5°C

Inlet Port - Tube Size:

6mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=16172&DisplayLogo=False
