SMC’s VM100 series are a compact and lightweight series of mechanical push-button pneumatic valves. Built to withstand harsh working conditions and available in a choice of colour to make identification quick and easy. Ideal for pneumatic control panels and confirming the position of a work piece using a pneumatic signal.
3 Port, 2 Way
Poppet type construction
R1/8” Ports
Suitable for vacuum applications
Available in red, green or black
Side mounting or bottom mounting
Poppet type construction
R1/8” Ports
Suitable for vacuum applications
Available in red, green or black
Side mounting or bottom mounting

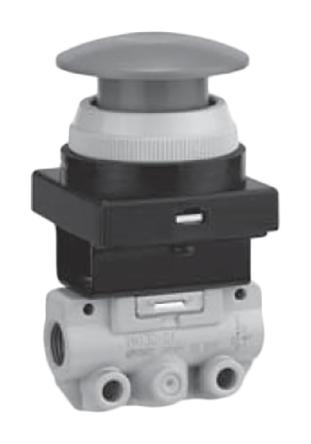

Push Button (Mushroom) Pneumatic Relay Pneumatic Manual Control Valve VM100 Series, R 1/8, 1/8, III B
Manufacturer:
SMC
Manufacturer Part No:
VM130-01-30RA
Enrgtech Part No:
ET14118479
Warranty:
Manufacturer
£ 35.28
Checking for live stock
Control Mechanism:
Push Button (Mushroom)
Connection Port Thread:
R 1/8
Function:
Pneumatic Relay
Thread Size:
1/8
Thread Standard:
R
Manufacturer Series:
VM100
Control Button/Switch Colour:
Red
Maximum Operating Pressure:
1 MPa
Minimum Operating Temperature:
-5°C
Maximum Operating Temperature:
+60°C
Number of Ports:
3
Number of Positions:
2
