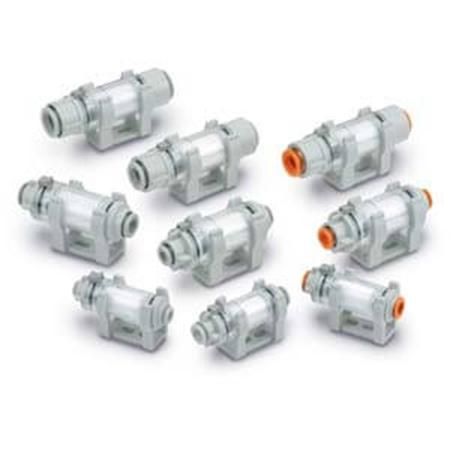

The SMC ZFC in-line air filter prevents trouble in equipment caused by contaminants in the air and has a maximum flow rate of 100L/minute. Both, positive pressure and vacuum pressure can be used with a single unit. During positive pressure, a lock mechanism prevents components from being scattered when they are loosened. It is light in weight and compact and the flexible mounting orientation makes it easy to install to the line. Tubing outer diameter is 12 mm
Maximum flow rate is 100L/min
5μm filtration level
Maximum operating pressure is 1.0MPa
Operating temperature ranges between 0°C and 60°C
