Distribution Panel Spike & Surge Device
Mains spike/surge protection devices that are ideal for protecting all sensitive electronic equipment.
Features and Benefits:
Protection from voltage transients that can occur between phases (L-N, L-E, N-E)
Designed to be installed close to the incoming electrical supply panel
Wired in parallel with the supply
The unit should be connected via HRC fuses or a circuit breaker to protect the connecting cable
Two-led status indicator indicate level of protection available
Designed to be installed close to the incoming electrical supply panel
Wired in parallel with the supply
The unit should be connected via HRC fuses or a circuit breaker to protect the connecting cable
Two-led status indicator indicate level of protection available

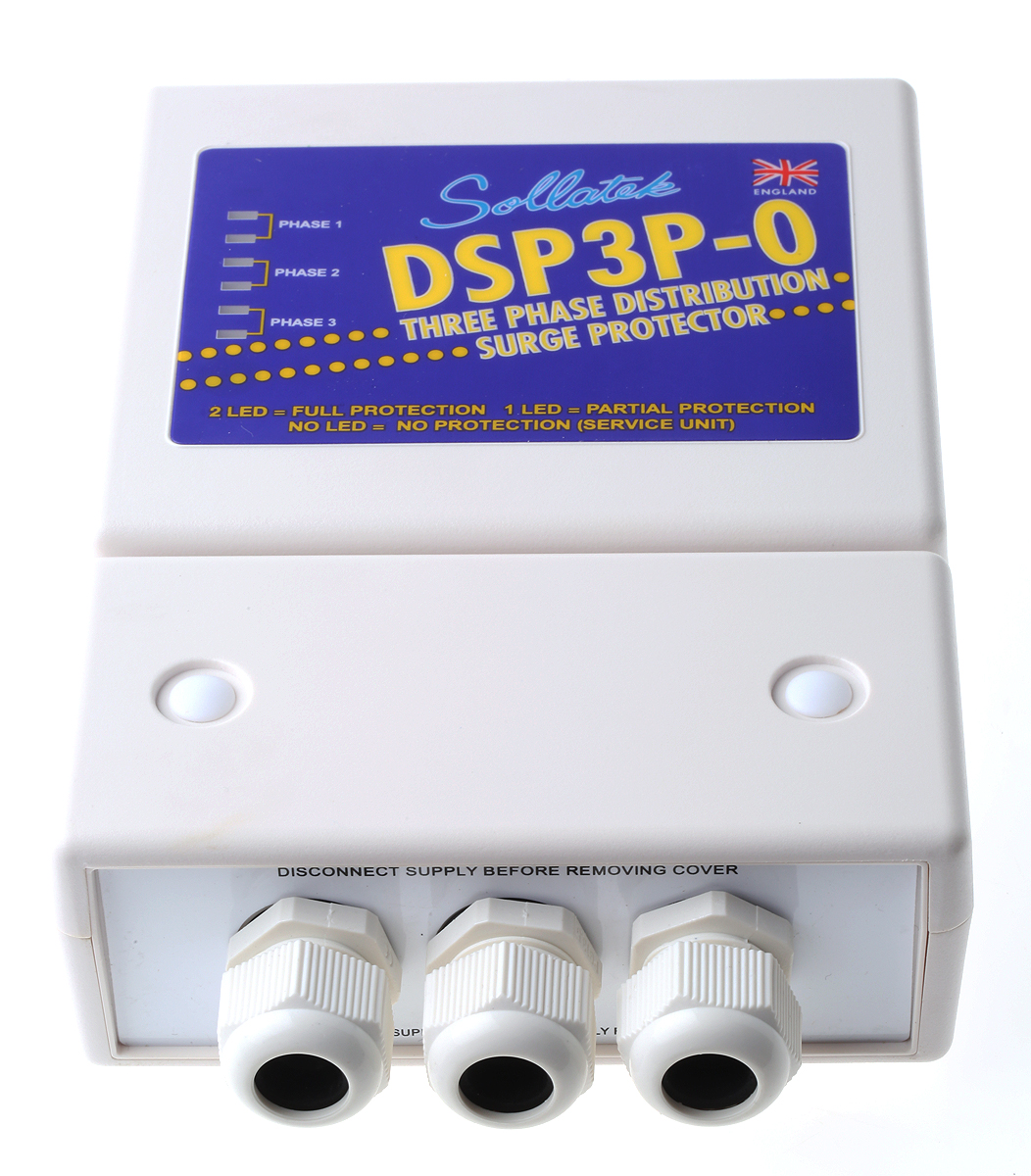

Voltage Suppressor 415V 3 phase, Class II Surge or Spike Protection, Wall Mount
Manufacturer:
Sollatek
Manufacturer Part No:
93000200
Enrgtech Part No:
ET13834183
Warranty:
Manufacturer
£ 225.68
Checking for live stock
Input Voltage:
415V
Output Voltage:
415V
Mounting Type:
Wall Mount
Maximum Operating Frequency:
75Hz
Maximum Temperature:
+55°C
Minimum Operating Frequency:
45Hz
Minimum Temperature:
0°C
Electrical Phase:
3
Protection Type:
3 phase, Class II Surge or Spike Protection
Standards Met:
ISO9001:2008
Voltage Protection Mode:
Under and Over Voltage
Wiring Configuration:
L N E
