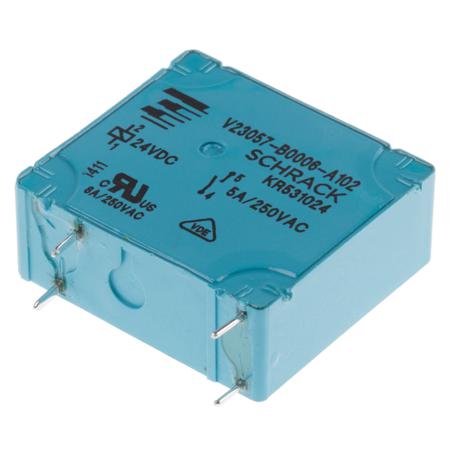

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST

TE Connectivity PCB Mount Power Relay, 24V dc Coil, 5A Switching Current, SPST

Manufacturer:
Manufacturer Part No:
V23057B6A102
Enrgtech Part No:
ET100441015
Warranty:
Manufacturer
£ 18.49 £ 18.49
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
SPST
Mounting Type:
PCB Mount
Switching Current:
5A
Number of Poles:
1
Series:
Card E
Latching:
No
Terminal Type:
Through Hole
Maximum Switching Voltage AC:
400V ac
Length:
28mm
Coil Resistance:
1200Ω
Coil Power:
480mW
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-40°C
Isolation Coil To Contact:
4kVrms
Contact Material:
Silver Alloy
Height:
25.1mm
Life:
20000 (Electrical) cycles, 20000000 (Mechanical) cycles
Depth:
10.4mm
Maximum Switching Power AC:
1.25 kVA
Application:
Power
pdf icon
0900766b81665336.pdf(datasheets)
