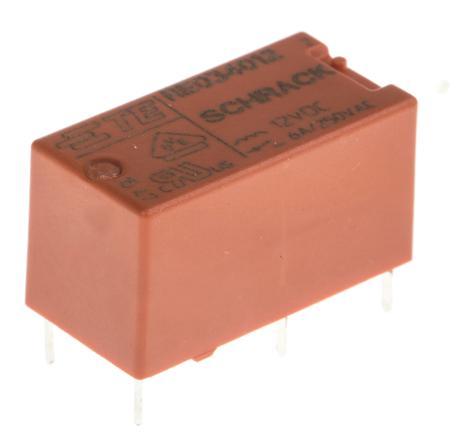

PCB Mount Power Relay, 12V dc Coil, 6A Switching Current, SPST

Coil Voltage:

12V dc

Contact Configuration:

SPST

Mounting Type:

PCB Mount

Switching Current:

6A

Number of Poles:

1

Latching:

No

Terminal Type:

Through Hole

Maximum Switching Voltage AC:

250V ac

Length:

20mm

Coil Resistance:

720Ω

Coil Power:

200mW

Life:

100000 (Electrical) cycles, 30000000 (Mechanical) cycles

Minimum Operating Temperature:

-40°C

Series:

RE

Height:

10.6mm

Maximum Operating Temperature:

+70°C

Depth:

10mm

Contact Material:

Silver Alloy

Isolation Coil To Contact:

4kVrms

Maximum Switching Power AC:

1.5 kVA

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1614091&DisplayLogo=False
