KUEP Series Relay
The KUEP series of general purpose industrial relays are typically used in applications such as vending, robotics, timers, welding, power generators and HVAC.
Enclosed
1 form X (1 NO-DM)
Magnetic blow-out system
Contact material: Ag
Solder, quick connect terminals
Operating temperature: -45°C → +70 °C
1 form X (1 NO-DM)
Magnetic blow-out system
Contact material: Ag
Solder, quick connect terminals
Operating temperature: -45°C → +70 °C

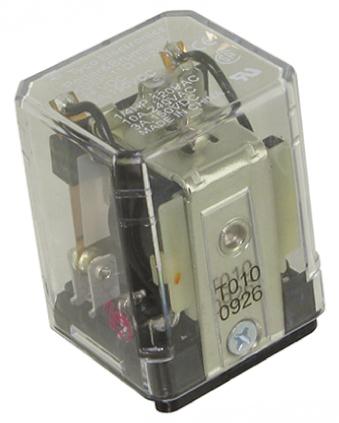

Plug In Power Relay, 24V dc Coil, 10A Switching Current, DPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
KUEP-11D15-24
Enrgtech Part No:
ET13919044
Warranty:
Manufacturer
£ 29.32
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
DPDT
Mounting Type:
Plug In
Switching Current:
10A
Number of Poles:
2
Latching:
No
Terminal Type:
Quick Connect
Length:
38.9mm
Coil Resistance:
320Ω
Contact Material:
Silver Alloy
Height:
48.4mm
Depth:
35.7mm
