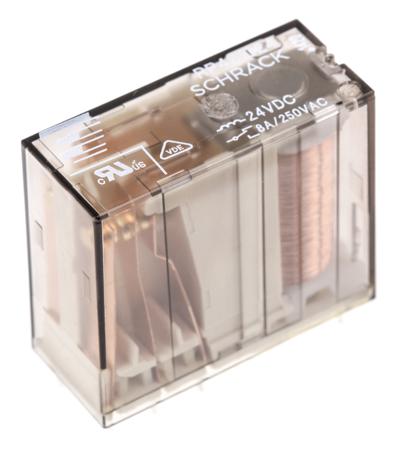

TE Connectivity Non-latching Relay The TE Connectivity RPII series PCB mount non-latching relay has a contact configuration of DPDT. It is actuated with 24VDC coil voltage and 8A switching current. Features and Benefits Coil resistance is 1.1Kohm
Coil power is 500mW
Creepage and clearance between contact and coil is ≥8/8mm
Contact material is silver nickel (AgNi)
Flux resistant
Operating temperature ranges between -40°C and 70°C
Through hole terminal type Applications Power supply
Domestic equipment
Heating control Certifications UL approved
CSA certified
VDE approved
REACH compliant
