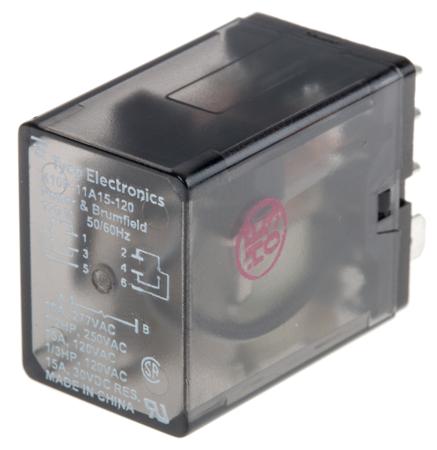

K10 Series Relay
K10 Series Miniature General Relay from TE Connectivity
DPDT 2 Form C
Silver Cadmium Oxide Contacts
Contact Rating 15 A @ 120 V ac
Operating Temperature -45°C to +70°C
Silver Cadmium Oxide Contacts
Contact Rating 15 A @ 120 V ac
Operating Temperature -45°C to +70°C
Plug In Power Relay, 120V ac Coil, 15A Switching Current, DPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
K10P-11A15-120
Enrgtech Part No:
ET14076842
Warranty:
Manufacturer
£ 13.66
Checking for live stock
Coil Voltage:
120V ac
Contact Configuration:
DPDT
Mounting Type:
Plug In
Switching Current:
15A
Number of Poles:
2
Latching:
No
Terminal Type:
Quick Connect
Length:
28.2mm
Coil Resistance:
3900Ω
Depth:
21.8mm
Height:
34.9mm
Series:
K10
