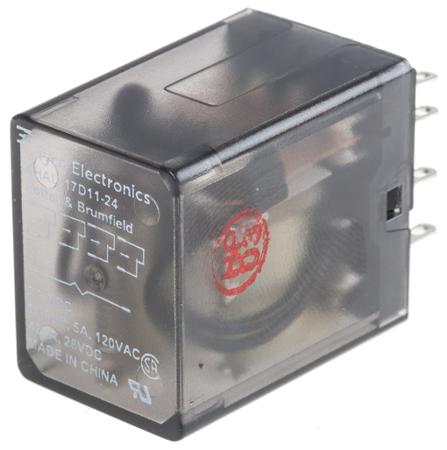

Plug In Power Relay, 24V dc Coil, 3A Switching Current, 4PDT

Coil Voltage:

24V dc

Contact Configuration:

4PDT

Mounting Type:

Plug In

Switching Current:

3A

Number of Poles:

4

Latching:

No

Terminal Type:

PCB Pin

Length:

28.2mm

Coil Resistance:

650Ω

Coil Power:

2W

Depth:

21.8mm

Height:

32.5mm

Series:

KHA

Maximum Operating Temperature:

+70°C

Minimum Operating Temperature:

-45°C

Contact Material:

Silver

Application:

General Purpose

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=7830489&DisplayLogo=False
