SNR Series - Slim Relays
High coil sensitivity: 170mW
Compact design (5mm thickness) for high density PCB mounting
Coil power: 210 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: 8 mm; 6 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 15, W 28, D 5
Compact design (5mm thickness) for high density PCB mounting
Coil power: 210 mW
Operating temperature range: -40 to +85°C
Creepage and clearance: 8 mm; 6 mm
Isolation coil to contact: 4000Vac
Switching voltage: 250Vac
H 15, W 28, D 5

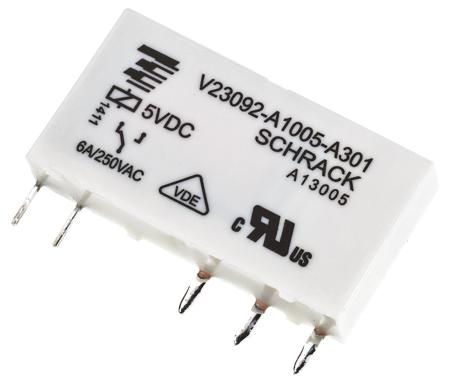

PCB Mount Power Relay, 5V dc Coil, 6A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
V23092-A1005-A301
Enrgtech Part No:
ET14077220
Warranty:
Manufacturer
£ 6.14
Checking for live stock
Coil Voltage:
5V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Switching Current:
6A
Number of Poles:
1
Latching:
No
Terminal Type:
Through Hole
Length:
28mm
Coil Resistance:
147Ω
Depth:
5mm
Contact Material:
Silver Alloy
Minimum Operating Temperature:
-40°C
