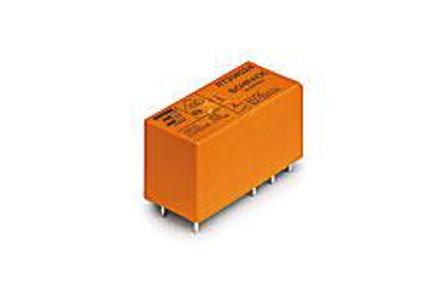

PCB Mount Latching Power Relay, 12V dc Coil, 16A Switching Current, SPST

Coil Voltage:

12V dc

Contact Configuration:

SPST

Mounting Type:

PCB Mount

Switching Current:

16A

Number of Poles:

1

Latching:

Yes

Terminal Type:

Through Hole

Maximum Switching Voltage AC:

400V

Length:

29mm

Coil Resistance:

360Ω

Coil Power:

400mW

Depth:

12.7mm

Life:

>3000000 (Mechanical) operations

Isolation Coil To Contact:

5kVrms

Maximum Operating Temperature:

+85°C

Height:

15.7mm

Minimum Operating Temperature:

-10°C

Standards Met:

cCSAus 1142018, IEC 60335-1, UL 508/NEMA 410, UL E214025, VDE Cert. No. 40007571

Contact Material:

Silver Alloy, Tungsten

Application:

Filament & Incandescent Lamp Loads, Intelligent Wall Sockets, Led Lighting Systems, Light Sensors, Motors, Movement Detectors

Dimensions:

29 x 12.7 x 15.7mm

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=92119&DisplayLogo=False
