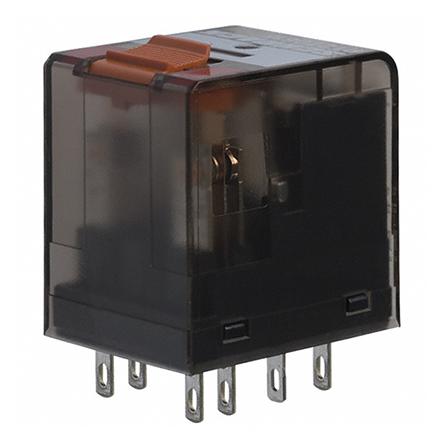

Plug In Power Relay, 24V dc Coil, 6A Switching Current, 4PDT

Coil Voltage:

24V dc

Contact Configuration:

4PDT

Mounting Type:

Plug In

Switching Current:

6A

Number of Poles:

4

Latching:

No

Terminal Type:

Plug In

Maximum Switching Voltage AC:

240V

Length:

28mm

Coil Resistance:

777Ω

Coil Power:

741mW

Maximum Operating Temperature:

+70°C

Life:

100000 (Electrical) cycles, 30000000 (Mechanical) Operations

Depth:

22.5mm

Isolation Coil To Contact:

2.5kVrms

Height:

29mm

Series:

PT

Minimum Operating Temperature:

-40°C

Contact Material:

Silver Alloy

Maximum Switching Power AC:

1.5 kVA

Application:

General Purpose, Industrial

3D Model:

https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=8639915&DisplayLogo=False
