RT1 Series - High Inrush Relays / Bistable
16A @ 250Vac making and breaking capacity acc. to IEC 60669-1
Reinforced insulation
Creepage & clearance 10mm
5mm pinning
Applications include lighting systems, movement sensors, filament and incandescent lamp loads, motors etc
Reinforced insulation
Creepage & clearance 10mm
5mm pinning
Applications include lighting systems, movement sensors, filament and incandescent lamp loads, motors etc

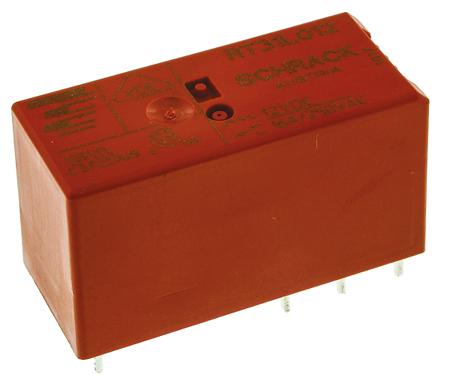

PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
RT31L012
Enrgtech Part No:
ET16720746
Warranty:
Manufacturer
£ 4.15
Checking for live stock
Coil Voltage:
12V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Switching Current:
16A
Number of Poles:
1
Latching:
No
Terminal Type:
Through Hole
Length:
29mm
Coil Resistance:
360Ω
Coil Power:
400mW
Maximum Operating Temperature:
+85°C
Height:
15.7mm
