TE Connectivity RT1 and RT2 Series PCB Power Relays
RT Series 1 and Series 2 through hole mounting PCB power relays with a variety of contact configurations and coil voltages.
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight Creepage and Clearance 10//10 mm
Applications: interface, automation, domestic applications, security lighting, heating systems
RT1 PCB have 3.5mm pinning and are flux proof
RT2 PCB have 5mm pinning and are flux proof
RT3 PCB have 5mm pinning and are flux proor
RTB PCB have 3.5mm pinning and are wash tight
RTD PCB have 5mm pinning and are wash tight
RT4 PCB have 5mm pinning and are flux proof
RTE PCB have 5mm pinning and are wash tight Creepage and Clearance 10//10 mm
Applications: interface, automation, domestic applications, security lighting, heating systems

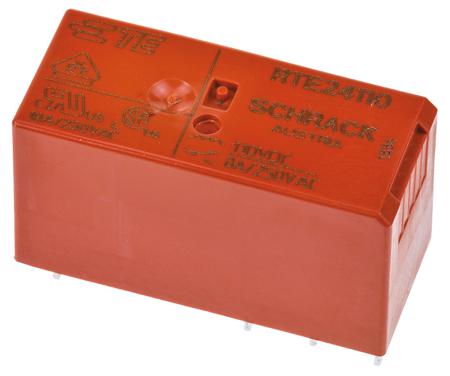

PCB Mount Power Relay, 110V dc Coil, 8A Switching Current, DPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
RTE24110
Enrgtech Part No:
ET16720763
Warranty:
Manufacturer
£ 2.33
Checking for live stock
Coil Voltage:
110V dc
Contact Configuration:
DPDT
Mounting Type:
PCB Mount
Switching Current:
8A
Number of Poles:
2
Latching:
No
Terminal Type:
Through Hole
Length:
29mm
Coil Resistance:
28800Ω
Maximum Operating Temperature:
+85°C
Height:
15.7mm
Minimum Operating Temperature:
-40°C
