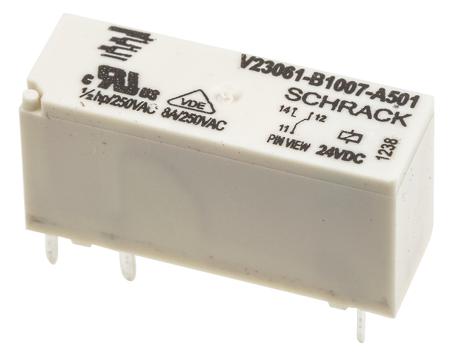

Power PCB relay, MSR relay, 8 A, 1-pin NO or CO relay
Features:
Neutral DC voltage coil monostable
Washproof
High inrush currents with AgSnO contact
4 kV / 8 mm coil contact
Protection class II
Ambient temperature up to 85 °C at 8 A Certified: VDE, UL, CSA, SEV, SEMKO, SETI
Washproof
High inrush currents with AgSnO contact
4 kV / 8 mm coil contact
Protection class II
Ambient temperature up to 85 °C at 8 A Certified: VDE, UL, CSA, SEV, SEMKO, SETI
PCB Mount Power Relay, 24V dc Coil, 8A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
V23061B1007A501
Enrgtech Part No:
ET16721202
Warranty:
Manufacturer
£ 2.32
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Switching Current:
8A
Number of Poles:
1
Latching:
No
Terminal Type:
Through Hole
Maximum Switching Voltage AC:
400V ac
Length:
30mm
Coil Resistance:
2270Ω
Coil Power:
254mW
Isolation Coil To Contact:
4kVrms
