TE Connectivity RZ Series PCB Power Relays
RZ Series PCB mounting power relays with a 400 mW DC coil and 5kV / 10mm reinforced insulation. These RZ Series PCB mounting power relays are flux tight and have silver nickel contacts.
12A versions of these RZ Series PCB mounting power relays have 3.5mm pinning
16A versions of these RZ Series PCB mounting power relays have 5 mm pinning 3.2 or 5 mm pinning
Dimensions: 29.00 x 12.70 x 15.70 mm
Meets the appliance industry requirements of IEC60335-1
12A versions of these RZ Series PCB mounting power relays have 3.5mm pinning
16A versions of these RZ Series PCB mounting power relays have 5 mm pinning 3.2 or 5 mm pinning
Dimensions: 29.00 x 12.70 x 15.70 mm
Meets the appliance industry requirements of IEC60335-1

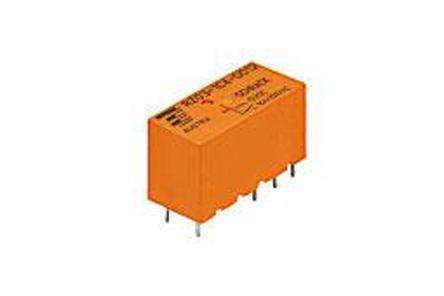

PCB Mount Power Relay, 48V dc Coil, 16A Switching Current, SPDT
Manufacturer:
TE Connectivity
Manufacturer Part No:
RZ03-1C4-D048
Enrgtech Part No:
ET16842747
Warranty:
Manufacturer
£ 0.80
Checking for live stock
Coil Voltage:
48V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Switching Current:
16A
Number of Poles:
1
Latching:
No
Maximum Switching Voltage AC:
400V
Length:
29mm
Coil Resistance:
5730Ω
Coil Power:
400mW
Series:
RZ
Minimum Operating Temperature:
-40°C
